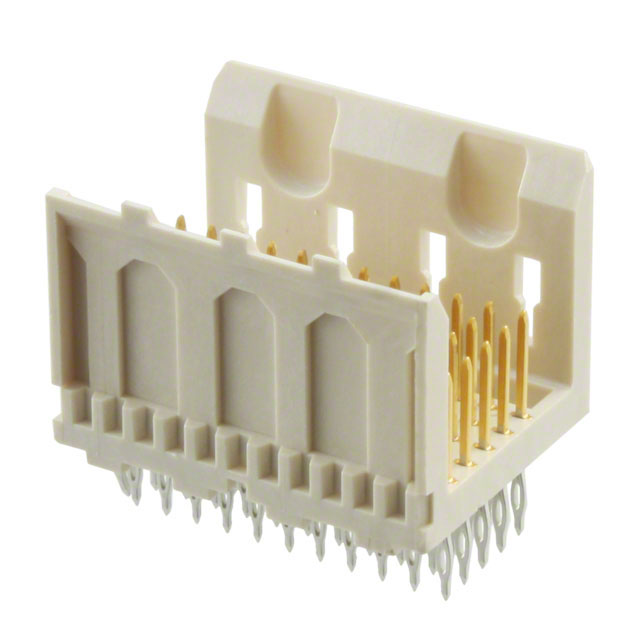

5223002-2
Or copy the link below:
- Mfr.Part #
- 5223002-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Module
- Datasheet
- Download
- Description
- CONN HEADER FUTUREBUS 60POS PCB
- Stock
- 196
- In Stock ：
- 196
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Positions Loaded :
- All
- Depth :
- 17.8mm
- Package / Case :
- Module
- RoHS Status :
- RoHS Compliant
- ELV :
- Compliant
- Mounting Type :
- Through Hole
- Material Flammability Rating :
- UL94 V-0
- Circuit Application :
- Signal
- Pbfree Code :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish :
- Gold
- Contact Material :
- Bronze
- MIL Conformance :
- No
- Mating Alignment :
- With
- Published :
- 1999
- Plating Thickness :
- 600 nm
- Body Breadth :
- 0.701 inch
- Max Voltage Rating (AC) :
- 30V
- Color :
- Natural
- Voltage - Rated AC :
- 30V
- Mixed Contacts :
- No
- ECCN Code :
- EAR99
- Width :
- 18mm
- Contact Style :
- SQ PIN-SKT
- Contact Current Rating :
- 3A
- Polarization Key :
- POLARIZED HOUSING
- Total Number of Contacts :
- 60
- Contact Plating :
- Gold, Tin
- Length - Tail :
- 4.25mm
- Dielectric Withstanding Voltage :
- 1000VAC V
- Factory Lead Time :
- 18 Weeks
- Housing Material :
- Polymer
- Flammability Rating :
- UL94 V-0
- Filter Feature :
- No
- Connector Style :
- Futurebus
- Orientation :
- Vertical
- Number Of PCB Rows :
- 5
- Contact Finish Thickness - Mating :
- 759.99848 nm
- IEC Conformance :
- No
- Connector Type :
- Header, Male Pins
- Termination :
- Press-Fit
- Number of Conductors :
- ONE
- Insulation Resistance :
- 5GOhm
- Row Spacing :
- 2 mm
- Mating Post Length :
- 6.5mm
- Number of Signal Positions :
- 60
- Operating Supply Voltage :
- 30V
- Height :
- 17.8mm
- DIN Conformance :
- No
- Reliability :
- COMMERCIAL
- Pitch :
- 0.079 2.00mm
- Gender :
- Male
- Lead Free :
- Not Applicable
- Contact Pattern :
- RECTANGULAR
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Operating Temperature :
- -55°C~125°C
- PCB Mount Alignment :
- Without
- Lead Length :
- 4.2418mm
- Option :
- GENERAL PURPOSE
- Number of Rows :
- 5
- Packaging :
- Tube
- Sealable :
- No
- Mount :
- Through Hole
- Body/Shell Style :
- PLUG
- Number of Positions :
- 60
- Reference Standard :
- UL, CSA
- Series :
- Z-PACK
- PCB Contact Pattern :
- RECTANGULAR
- Length :
- 23.88mm
- Datasheets
- 5223002-2
Z-PACK Series Header, Male Pins Press-Fit Gold Natural 60 Positions Pitch: 0.079 2.00mm -55°C~125°C Tube Through Hole
5223002-2 Overview
Packaging is Header, Male Pins.Through Hole is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the Z-PACK Series, it can be found in this category.An enclosed device is enclosed in the packaging with the Module.In this case, Through Hole mounts the part.The device is operating at -55°C~125°C Operating Temperature.The Backplane Connector is functional when supplied with voltage 30V.
5223002-2 Features
Z-PACK series
5223002-2 Applications
There are a lot of TE Connectivity AMP Connectors
5223002-2 Backplane Connectors applications.
