5223002-4
Or copy the link below:
- Mfr.Part #
- 5223002-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Module
- Datasheet
- Download
- Description
- CONN HEADER FUTUREBUS 120POS PCB
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Connector Style :
- Futurebus
- Max Voltage Rating (AC) :
- 30V
- Length - Tail :
- 4.25mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Total Number of Contacts :
- 120
- Depth :
- 17.8mm
- Number of Conductors :
- ONE
- Dielectric Withstanding Voltage :
- 1000VAC V
- Filter Feature :
- No
- Mating Post Length :
- 6.5mm
- Gender :
- Male
- Termination :
- Press-Fit
- Body Breadth :
- 0.701 inch
- Width :
- 18mm
- Row Spacing :
- 2 mm
- Contact Finish :
- Gold
- Material Flammability Rating :
- UL94 V-0
- Contact Style :
- SQ PIN-SKT
- Published :
- 1999
- Number Of PCB Rows :
- 5
- Reliability :
- COMMERCIAL
- PCB Mount Alignment :
- Without
- Contact Material :
- Bronze
- Mating Alignment :
- With
- Polarization Key :
- POLARIZED HOUSING
- Factory Lead Time :
- 16 Weeks
- Flammability Rating :
- UL94 V-0
- Packaging :
- Tube
- Mount :
- Through Hole
- Housing Material :
- Polymer
- Orientation :
- Vertical
- Contact Current Rating :
- 3A
- Sealable :
- No
- Insulation Resistance :
- 5mOhm
- Series :
- Z-PACK
- Contact Finish Thickness - Mating :
- 759.99848 nm
- Operating Supply Voltage :
- 30V
- DIN Conformance :
- No
- Lead Length :
- 4.2418mm
- Contact Pattern :
- RECTANGULAR
- Length :
- 47.88mm
- Height :
- 17.8mm
- Contact Plating :
- Gold, Tin
- IEC Conformance :
- No
- Mixed Contacts :
- No
- Voltage - Rated AC :
- 30V
- Pbfree Code :
- yes
- Pitch :
- 0.079 2.00mm
- Number of Rows :
- 5
- Number of Positions :
- 120
- Circuit Application :
- Signal
- Body/Shell Style :
- PLUG
- Operating Temperature :
- -55°C~125°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Contact Pattern :
- RECTANGULAR
- Reference Standard :
- UL, CSA
- Number of Signal Positions :
- 120
- Plating Thickness :
- 600 nm
- RoHS Status :
- RoHS Compliant
- Number of Positions Loaded :
- All
- ECCN Code :
- EAR99
- Mounting Type :
- Through Hole
- Color :
- Natural
- ELV :
- Compliant
- Connector Type :
- Header, Male Pins
- Option :
- GENERAL PURPOSE
- MIL Conformance :
- No
- Lead Free :
- Not Applicable
- Package / Case :
- Module
- Datasheets
- 5223002-4

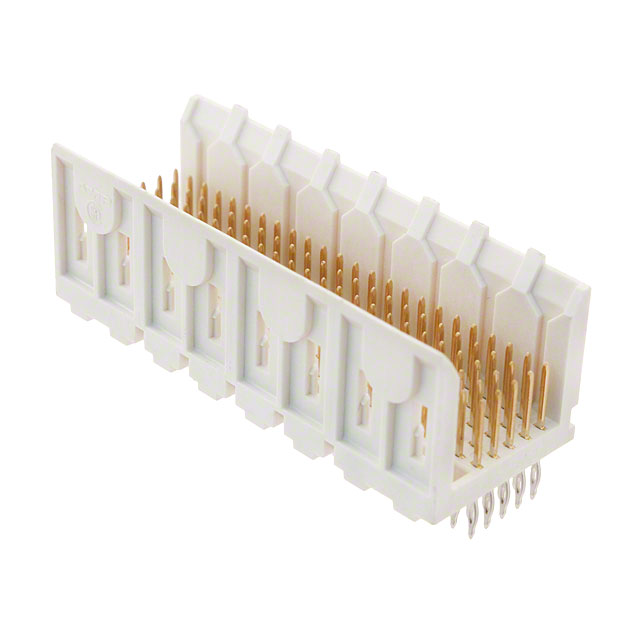

Z-PACK Series Header, Male Pins Press-Fit Gold Natural 120 Positions Pitch: 0.079 2.00mm -55°C~125°C Tube Through Hole
5223002-4 Overview
This product is packaged in a Header, Male Pins box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Z-PACK Series.Module refers to a package enclosing a device.By Through Hole, the part is mounted.Operating temperature is set to -55°C~125°C.The Backplane Connector is capable of working with a supply voltage of 30V.
