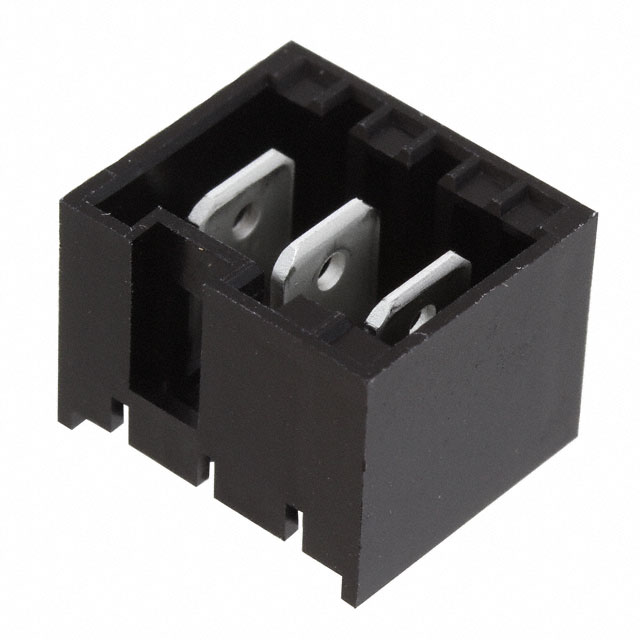

5-521382-3
Or copy the link below:
- Mfr.Part #
- 5-521382-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 5MM
- Stock
- 308
- In Stock ：
- 308
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- All
- Mixed Contacts :
- No
- Packaging :
- Bulk
- Reach Compliance Code :
- Unknown
- DIN Conformance :
- No
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Number of Rows :
- 1
- UL Flammability Code :
- 94V-0
- Terminal Pitch :
- 5mm
- Contact Type :
- Tab
- Contact Length - Post :
- 0.138 3.50mm
- Contact Shape :
- RECTANGULAR
- Mounting Type :
- Through Hole
- Number of Positions :
- 3
- Operating Temperature :
- -40°C~120°C
- Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.197 5.00mm
- Material :
- Nylon
- IEC Conformance :
- No
- Factory Lead Time :
- 11 Weeks
- Color :
- Black
- Insulation Height :
- 0.504 12.80mm
- Fastening Type :
- Latch Holder
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Header
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Applications :
- GENERAL PURPOSE
- Contact Finish - Mating :
- Tin
- Feature :
- Board Guide, Glow Wire Compliant
- Additional Feature :
- LATCHED, POLARIZED
- Voltage - Rated :
- 250VAC
- RoHS Status :
- Non-RoHS Compliant
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Contact Gender :
- Male
- MIL Conformance :
- No
- Contact Material :
- Brass
- ECCN Code :
- EAR99
- Published :
- 2012
- Shrouding :
- Shrouded - 4 Wall
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Filter Feature :
- No
- Datasheets
- 5-521382-3
5-521382-3 Documents
1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 3-Position Board to Cable/Wire 0.504 12.80mm Height
5-521382-3 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.Among other features are LATCHED, POLARIZED, to name only a few.The device may be used for the following applications: General Purpose.It is more powerful in many ways due to its Board Guide, Glow Wire Compliant feature.It operates at an operating temperature of -40°C~120°C.
5-521382-3 Features
5-521382-3 Applications
There are a lot of TE Connectivity AMP Connectors
5-521382-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
