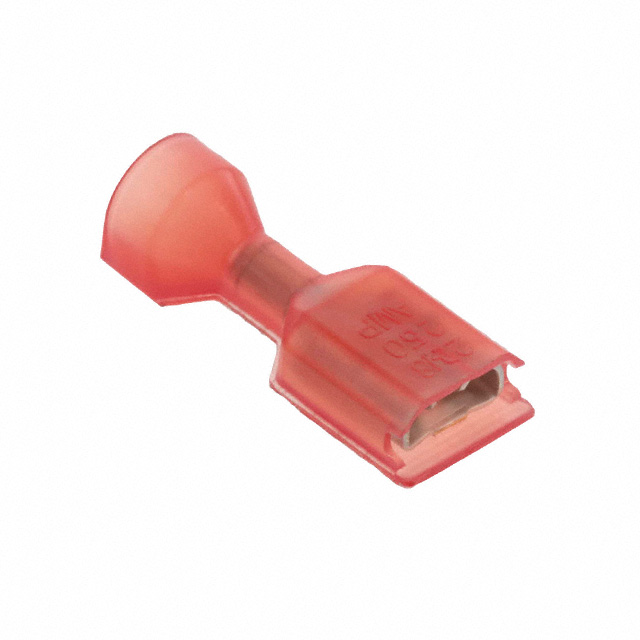

5-520263-2
Or copy the link below:
- Mfr.Part #
- 5-520263-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 250 ULTRA-FAST RCPT 22-18 TPBR
- Stock
- 163,161
- In Stock ：
- 163,161
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Tab Thickness :
- 0.032 0.81mm
- HTS Code :
- 8536.90.40.00
- Terminal and Terminal Block Type :
- PUSH-ON TERMINAL
- Contact Material :
- Brass
- Packaging :
- Bulk
- Wire Gauge (Max) :
- 18 AWG
- Contact Finish :
- Tin
- Mating Tab Width :
- 6.35mm
- Wire Gauge (Min) :
- 22 AWG
- Mounting Type :
- Free Hanging (In-Line)
- Length - Overall :
- 0.935 23.75mm
- Wire/Cable Diameter :
- 5.842 mm
- Wire/Cable Type :
- Discrete
- Flammability Rating :
- UL94 V-2
- Factory Lead Time :
- 9 Weeks
- Color :
- Red
- ECCN Code :
- EAR99
- Terminal Type :
- Standard
- Series :
- Ultra-Fast
- Wire Gauge :
- 18-22 AWG
- Width - Tab :
- 0.250 6.35mm
- Insulation :
- Fully Insulated
- Insulation Diameter :
- 0.230 (5.84mm)
- Length :
- 23.749mm
- Insulation Material :
- Nylon
- Orientation :
- Straight
- Termination :
- Crimp
- Gender :
- FEMALE
- Sealable :
- No
- Plating Thickness :
- 1.016μm
- Published :
- 2009
- Insulated Wire Support :
- yes
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Datasheets
- 5-520263-2
