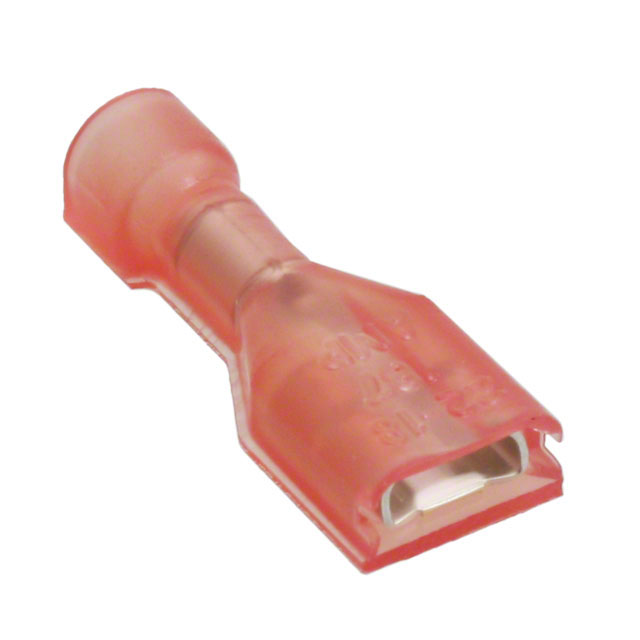

2-520193-2
Or copy the link below:
- Mfr.Part #
- 2-520193-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN QC RCPT 18-22AWG 0.187
- Stock
- 297,584
- In Stock ：
- 297,584
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Termination :
- Crimp
- Insulated Wire Support :
- yes
- Wire/Cable Diameter :
- 3.43 mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Operating Temperature :
- 105°C
- Body Material :
- Brass
- Wire/Cable Gauge :
- 22 AWG
- ELV :
- Compliant
- Mating Tab Width :
- 4.75mm
- Gender :
- FEMALE
- Factory Lead Time :
- 7 Weeks
- Terminal Type :
- Standard
- Length - Overall :
- 0.855 21.72mm
- Published :
- 2004
- REACH SVHC :
- Unknown
- Radiation Hardening :
- No
- Wire/Cable Type :
- Discrete
- Insulation Material :
- Nylon
- Wire Gauge :
- 18-22 AWG
- Packaging :
- Tape and Reel (TR)
- Contact Finish :
- Tin
- Tab Thickness :
- 0.032 0.81mm
- Terminal Material :
- Brass
- Lead Free :
- Lead Free
- Insulation Diameter :
- 0.135 (3.43mm)
- Length :
- 21.717mm
- Wire Gauge (Max) :
- 18 AWG
- Series :
- Ultra-Fast
- Contact Material :
- Brass
- Wire Gauge (Min) :
- 22 AWG
- Color :
- Red
- RoHS Status :
- RoHS Compliant
- Sealable :
- No
- Material :
- Brass
- Plating :
- Tin
- Insulation :
- Fully Insulated
- Orientation :
- Straight
- Flammability Rating :
- UL94 V-2
- Contact Plating :
- Tin
- Width - Tab :
- 0.187 4.75mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mounting Type :
- Free Hanging (In-Line)
- Body Plating :
- Tin
- Depth :
- 8.53mm
- Datasheets
- 2-520193-2
2-520193-2 datasheet pdf and Terminals - Quick Connects, Quick Disconnect Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
