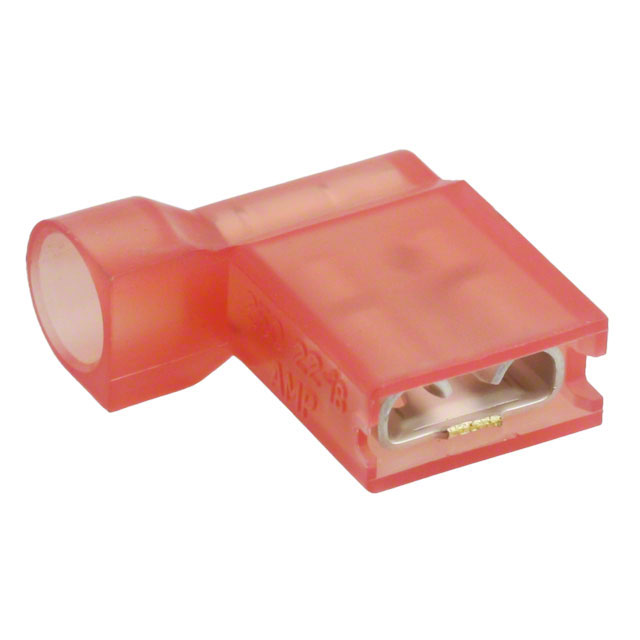

2-520129-2
Or copy the link below:
- Mfr.Part #
- 2-520129-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN QC RCPT 18-22AWG 0.250
- Stock
- 66,393
- In Stock ：
- 66,393
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Color :
- Red
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Diameter :
- 0.165 (4.19mm)
- Orientation :
- RIGHT ANGLE
- Wire Gauge :
- 18-22 AWG
- Gender :
- FEMALE
- ELV :
- Compliant
- Max Operating Temperature :
- 105°C
- Factory Lead Time :
- 7 Weeks
- Mating Tab Width :
- 6.35mm
- HTS Code :
- 8536.90.40.00
- Contact Material :
- Brass
- Insulation :
- Fully Insulated
- Tab Thickness :
- 0.032 0.81mm
- Wire/Cable Type :
- Discrete
- RoHS Status :
- RoHS Compliant
- Depth :
- 14.73mm
- Wire/Cable Diameter :
- 4.19 mm
- Series :
- Ultra-Fast
- Wire Gauge (Max) :
- 18 AWG
- Published :
- 1997
- Insulated Wire Support :
- yes
- Wire Gauge (Min) :
- 22 AWG
- Terminal and Terminal Block Type :
- PUSH-ON TERMINAL
- Min Operating Temperature :
- -55°C
- Sealable :
- No
- Terminal Type :
- Angled - 90°, Flag
- Flammability Rating :
- UL94 V-2
- Contact Plating :
- Tin
- Termination :
- Crimp
- Width - Tab :
- 0.250 6.35mm
- Length :
- 14.732mm
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Wire/Cable Gauge :
- 22 AWG
- REACH SVHC :
- No SVHC
- Insulation Material :
- Nylon
- Wire Cross Section :
- 0.9 mm2
- Lead Free :
- Lead Free
- Pbfree Code :
- yes
- Packaging :
- Bulk
- Mount :
- Free Hanging
- ECCN Code :
- EAR99
- Datasheets
- 2-520129-2
2-520129-2 datasheet pdf and Terminals - Quick Connects, Quick Disconnect Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
