5-520315-5

Share

Or copy the link below:

Mfr.Part #
5-520315-5
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN FFC VERT 5POS 2.54MM PCB
Stock
1,900
In Stock :
1,900

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
FFC, FPC (Flat Flexible) Connector Assemblies
Pitch :
0.100 2.54mm
Lead Length :
3.56mm
UL Flammability Code :
94V-0
Option :
GENERAL PURPOSE
PCB Thickness :
1.57mm
Length :
17.6mm
Connector/Contact Type :
Contacts, Vertical - 1 Sided
Orientation :
Vertical
Series :
Triomate
FFC, FCB Thickness :
0.13mm ~ 0.38mm
Lead Free :
Lead Free
Lead Pitch :
2.54mm
Contact Material :
Phosphor Bronze
Flat Flex Type :
FFC, FPC
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
IEC Conformance :
No
Factory Lead Time :
14 Weeks
Connector Type :
Connector, Receptacle, Socket
Operating Temperature :
-55°C~105°C
Circuit Application :
Signal
Packaging :
Bulk
Number of Positions :
5
MIL Conformance :
No
Sealable :
No
Mounting Type :
Through Hole
Voltage - Rated :
250V
Cable End Type :
Straight
Published :
2003
DIN Conformance :
No
Contact Finish :
Tin
Mating Connector Lock :
Without
Mating Alignment :
With
RoHS Status :
RoHS Compliant
ELV :
Compliant
Flammability Rating :
UL94 V-0
Mount :
Through Hole
Mating Cycles :
25
Length - Tail :
3.56mm
Current Rating :
1A
Mixed Contacts :
No
Height Above Board :
0.273 6.93mm
Termination :
Kinked Pin
Housing Color :
Black
Gender :
Receptacle
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Depth :
4.83mm
Total Number of Contacts :
5
Material Flammability Rating :
UL94 V-0
Housing Material :
Polyester Thermoplastic, Glass Filled
Filter Feature :
No
Number of Rows :
1
Datasheets
5-520315-5
Introducing FFC, FPC (Flat Flexible) Connector Assemblies TE Connectivity AMP Connectors 5-520315-5 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-55°C~105°C, Mounting Type:Through Hole, 5-520315-5 pinout, 5-520315-5 datasheet PDF, 5-520315-5 amp .Beyond FFC, FPC (Flat Flexible) Connector Assemblies TE Connectivity AMP Connectors 5-520315-5 ,we also offer 0527450497, 1-1734592-0, 62674-161121ALF, Our vast inventory has you covered. Contact us now for immediate solutions.

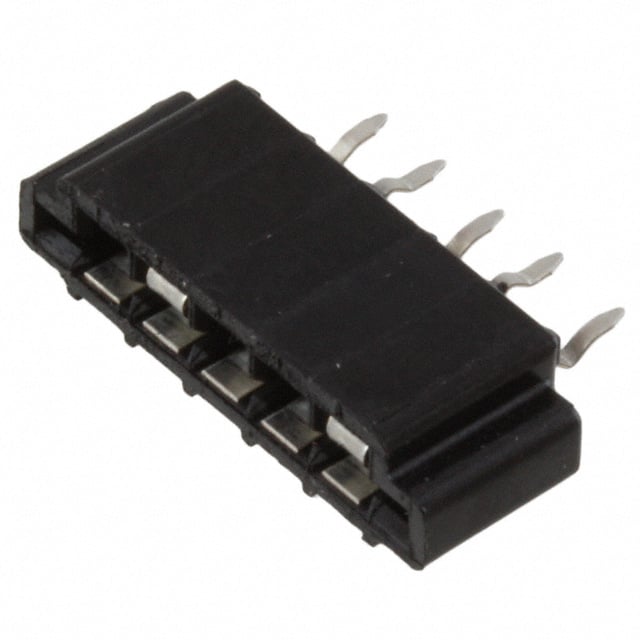

TE Connectivity AMP Connectors 5-520315-5
