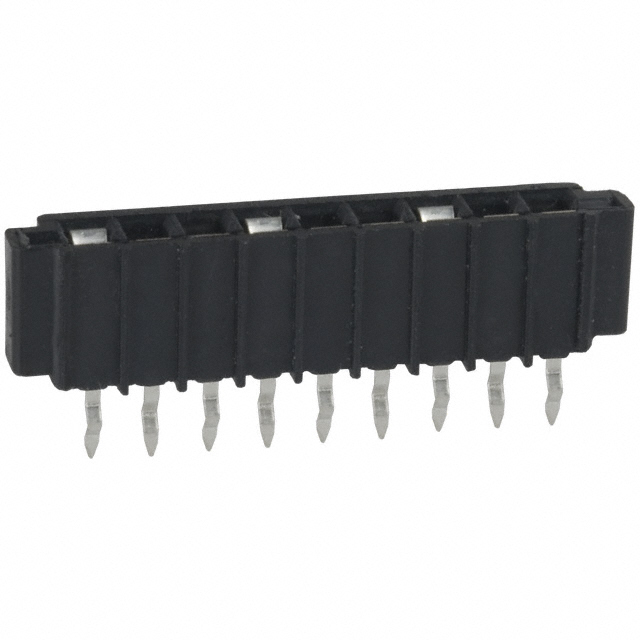

5-520316-9
Or copy the link below:
- Mfr.Part #
- 5-520316-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC VERT 9POS 2.54MM PCB
- Stock
- 15,919
- In Stock ：
- 15,919
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Mounting Type :
- Through Hole
- Voltage - Rated :
- 250V
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Number of Rows :
- 1
- RoHS Status :
- RoHS Compliant
- Material Flammability Rating :
- UL94 V-0
- Lead Pitch :
- 2.5mm
- Gender :
- FEMALE
- ELV :
- Compliant
- Height Above Board :
- 0.273 6.93mm
- Lead Free :
- Lead Free
- Length - Tail :
- 4.06mm
- Cable End Type :
- Straight
- Depth :
- 4.83mm
- Filter Feature :
- No
- Contact Material :
- Phosphor Bronze
- Series :
- Triomate
- Packaging :
- Tray
- Pitch :
- 0.100 2.54mm
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Circuit Application :
- Signal
- Length :
- 27.76mm
- Current Rating :
- 1A
- Operating Temperature :
- -55°C~105°C
- Factory Lead Time :
- 18 Weeks
- Mating Connector Lock :
- Without
- IEC Conformance :
- No
- PCB Thickness :
- 2.36mm
- Termination :
- Kinked Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- FFC, FCB Thickness :
- 0.13mm ~ 0.38mm
- Orientation :
- Vertical
- Mating Alignment :
- With
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 9
- Housing Material :
- Polyester Thermoplastic, Glass Filled
- Sealable :
- No
- Lead Length :
- 4.064mm
- Mating Cycles :
- 25
- Contact Plating :
- Lead, Tin
- Flat Flex Type :
- FFC, FPC
- Contact Finish :
- Tin
- Mount :
- Through Hole
- Mixed Contacts :
- No
- Connector Type :
- Connector, Receptacle, Socket
- MIL Conformance :
- No
- Option :
- GENERAL PURPOSE
- Housing Color :
- Black
- DIN Conformance :
- No
- Total Number of Contacts :
- 9
- Published :
- 2007
- Datasheets
- 5-520316-9
Triomate Series FFC, FPC Contacts, Vertical - 1 Sided Tray 0.100 2.54mm Kinked Pin 9 Positions Through Hole Tin -55°C~105°C
