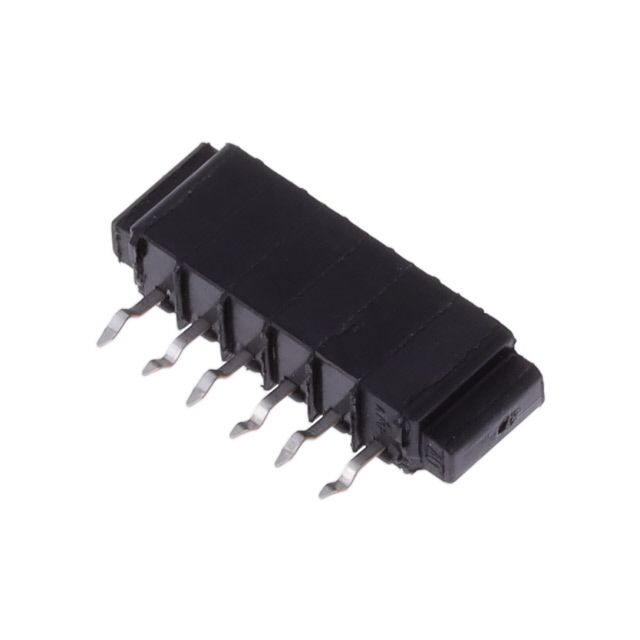

5-487509-5
Or copy the link below:
- Mfr.Part #
- 5-487509-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TRIOMATE ASY V 6P L=4.064,LDFR
- Stock
- 1,857
- In Stock ：
- 1,857
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Termination :
- Kinked Pin
- Packaging :
- Bulk
- Contact Material :
- Phosphor Bronze
- Mating Alignment :
- With
- Factory Lead Time :
- 18 Weeks
- Voltage - Rated :
- 250V
- Height Above Board :
- 0.273 6.93mm
- Reliability :
- COMMERCIAL
- Mating Cycles :
- 25
- Length :
- 20.14mm
- Series :
- Triomate
- Housing Material :
- Polyester Thermoplastic, Glass Filled
- PCB Thickness :
- 1.57mm
- Mating Connector Lock :
- Without
- ELV :
- Compliant
- Depth :
- 4.83mm
- Gender :
- FEMALE
- Contact Pattern :
- RECTANGULAR
- Current Rating :
- 1A
- Length - Tail :
- 4.06mm
- Number of Rows :
- 1
- Pitch :
- 0.100 2.54mm
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 6
- Connector Type :
- Connector, Receptacle, Socket
- Operating Temperature :
- -55°C~105°C
- Circuit Application :
- Signal
- Sealable :
- No
- Total Number of Contacts :
- 6
- Material Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- Flat Flex Type :
- FFC, FPC
- Lead Length :
- 4.064mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Contact Finish Thickness :
- 200.0μin 5.08μm
- Plating Thickness :
- 5µm
- Housing Color :
- Black
- Mounting Type :
- Through Hole
- Orientation :
- Vertical
- RoHS Status :
- RoHS Compliant
- Published :
- 2011
- Contact Finish :
- Tin
- FFC, FCB Thickness :
- 0.13mm ~ 0.38mm
- Datasheets
- 5-487509-5
Triomate Series FFC, FPC Contacts, Vertical - 1 Sided Bulk 0.100 2.54mm Kinked Pin 6 Positions Through Hole Tin -55°C~105°C
5-487509-5 Overview
Packaging is Connector, Receptacle, Socket.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Triomate Series.There is a mounting hole at Through Hole.Devices operate at -55°C~105°C operating temperatures.
5-487509-5 Features
Triomate series
5-487509-5 Applications
There are a lot of TE Connectivity AMP Connectors
5-487509-5 FFC, FPC (Flat Flexible) Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
