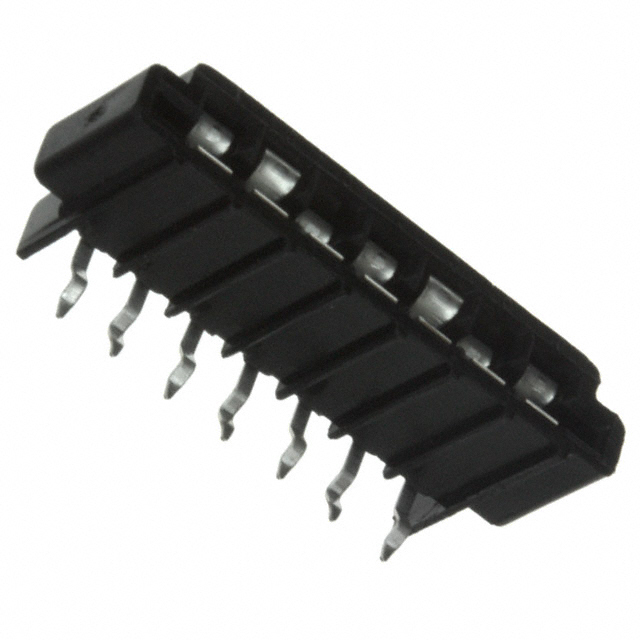

5-487508-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Filter Feature :

No

Number of Positions :

7

Operating Temperature :

-55°C~105°C

Mating Alignment :

With

Length :

22.68mm

MIL Conformance :

No

Voltage - Rated :

250V

Mixed Contacts :

No

Material Flammability Rating :

UL94 V-0

Flat Flex Type :

FFC, FPC

Mating Connector Lock :

Without

UL Flammability Code :

94V-0

Pitch :

0.100 2.54mm

Housing Color :

Black

Mounting Type :

Through Hole, Right Angle

Contact Finish :

Tin

Orientation :

RIGHT ANGLE

Length - Tail :

80.772mm

Contact Material :

Phosphor Bronze

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

1

Depth :

6.93mm

Housing Material :

Polyester Thermoplastic, Glass Filled

REACH SVHC :

Unknown

Contact Finish Thickness :

196.9μin 5.00μm

Factory Lead Time :

14 Weeks

Connector/Contact Type :

Contacts, Top

PCB Mounting Orientation :

RIGHT ANGLE

PCB Thickness :

1.57mm

Connector Type :

Connector, Receptacle, Socket

Packaging :

Bulk

Sealable :

No

Option :

GENERAL PURPOSE

IEC Conformance :

No

Lead Length :

4.064mm

RoHS Status :

RoHS Compliant

Flammability Rating :

UL94 V-0

Termination :

Kinked Pin

Series :

Triomate

Published :

2009

Current Rating :

1A

Circuit Application :

Signal

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Gender :

Receptacle

DIN Conformance :

No

FFC, FCB Thickness :

0.13mm ~ 0.38mm

Plating Thickness :

5µm

Mount :

Through Hole

Mating Cycles :

25

Total Number of Contacts :

7

Wire/Cable Type :

Straight

Height Above Board :

0.190 4.83mm
