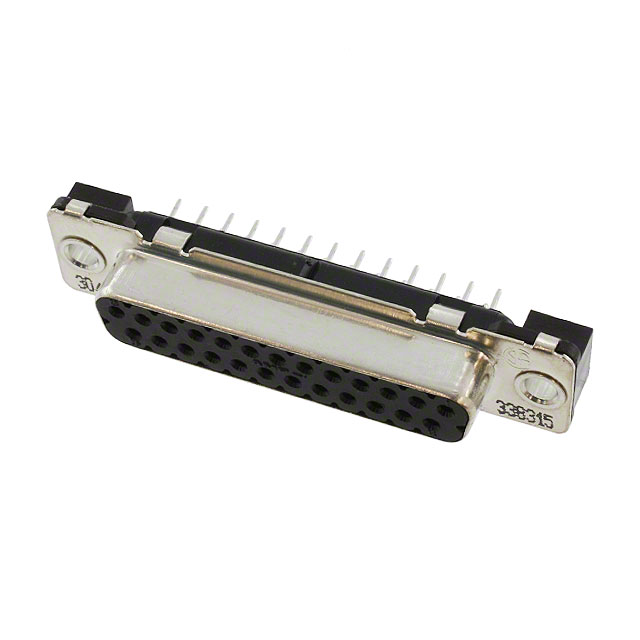

5-338315-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

D-Sub Connector Assemblies

Total Number of Contacts :

25

Reliability :

COMMERCIAL

Filter Feature :

No

DIN Conformance :

No

Lead Length :

3.2mm

Reference Standard :

UL

Orientation :

Vertical

ELV :

Compliant

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Contact Shape :

Round

Option :

GENERAL PURPOSE

Material Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole

MIL Conformance :

No

Published :

2005

PCB Contact Pattern :

STAGGERED

Number of Rows :

2

Flange Feature :

Housing/Shell (Unthreaded)

Shell Finish :

Tin

Body Breadth :

0.488 inch

Pitch :

2.76mm

Width :

12.1mm

Termination :

Solder

Shell Material :

Steel

Shell Material, Finish :

Steel, Tin Plated

Dielectric Material :

Polyester, Glass Filled

Contact Gender :

FEMALE

Plating Thickness :

760 nm

Contact Material :

Phosphor Bronze

Sealable :

No

Number of Positions :

25

PCB Mount Retention :

Without

Operating Temperature :

-55°C~105°C

JESD-609 Code :

e3

Connector Type :

Receptacle, Female Sockets

Series :

AMPLIMITE HDP-20

Number of Ports :

1

Factory Lead Time :

26 Weeks

Contact Plating :

Gold, Tin

Number Of PCB Rows :

2

Housing Material :

Polyester

PCB Thickness :

1.6mm

RoHS Status :

RoHS Compliant

Row Spacing :

2.8448 mm

Current Rating :

6A

Mixed Contacts :

No

Hole Diameter :

3.1 mm

UL Flammability Code :

94V-0

Connector Style :

D-Sub

Pbfree Code :

yes

Length :

53.1mm

Preloaded :

yes

Contact Finish :

Gold

Color :

Black

Plating :

Tin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Empty Shell :

No

Mount :

Through Hole

IEC Conformance :

No

Contact Type :

Signal

Depth :

12.4mm

Flammability Rating :

UL94 V-0

Shell Size, Connector Layout :

3 DB B

Packaging :

Bulk
