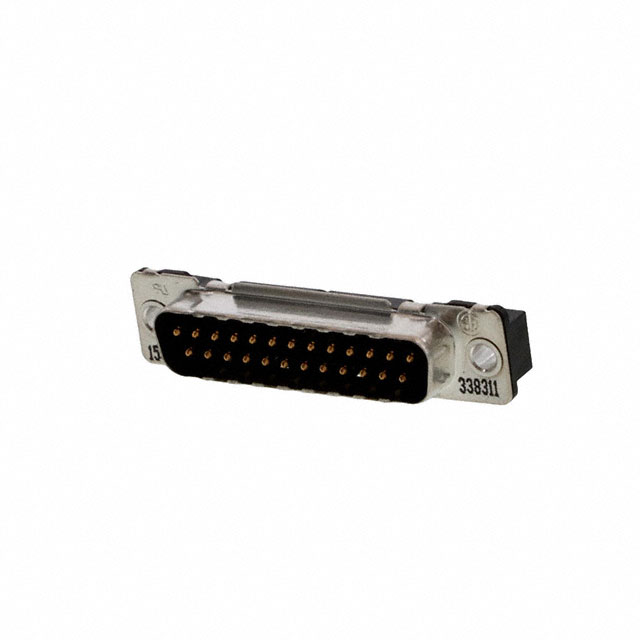

5-338311-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

D-Sub Connector Assemblies

Depth :

12.6mm

Connector Style :

D-Sub

Mating Connector Lock :

Without

Reference Standard :

UL

Plating :

Tin

Option :

GENERAL PURPOSE

Mount :

Through Hole

Number of Ports :

1

Lead Length :

3.2mm

Sealable :

No

PCB Thickness :

1.6mm

Series :

AMPLIMITE HDP-20

Preloaded :

yes

MIL Conformance :

No

Termination :

Solder

Length :

53.1mm

HTS Code :

8536.69.40.30

Published :

2005

Factory Lead Time :

26 Weeks

Shielding :

Unshielded

Reliability :

COMMERCIAL

Mounting Type :

Through Hole

Pbfree Code :

yes

Shell Material, Finish :

Steel, Tin Plated

ECCN Code :

EAR99

Empty Shell :

No

Connector Type :

Plug, Male Pins

Shell Finish :

Tin

Contact Shape :

Round

Flammability Rating :

UL94 V-0

Flange Feature :

Housing/Shell (Unthreaded)

PCB Mount Retention :

With

Pitch :

2.76mm

Filter Feature :

No

Housing Material :

Glass

Operating Temperature :

-55°C~105°C

Width :

12.6mm

Dielectric Material :

Polyester, Glass Filled

Number of Positions :

25

Feature :

Grounding Indents

Row Spacing :

2.8448 mm

RoHS Status :

RoHS Compliant

Body Breadth :

0.496 inch

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Shell Size, Connector Layout :

3 DB B

PCB Contact Pattern :

STAGGERED

Hole Diameter :

5 mm

ELV :

Compliant

UL Flammability Code :

94V-0

Number of Rows :

2

Total Number of Contacts :

25

Contact Type :

Signal

Material Flammability Rating :

UL94 V-0

IEC Conformance :

No

Contact Finish :

Gold

Orientation :

Vertical

Gender :

Male

Mixed Contacts :

No

Contact Material :

Phosphor Bronze

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shell Material :

Steel

Current Rating :

6A

Color :

Black

DIN Conformance :

No

Number Of PCB Rows :

2
