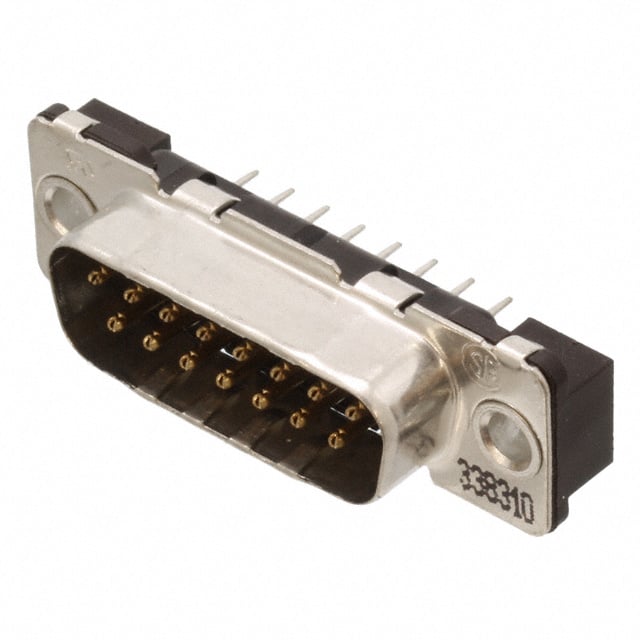

5-338310-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

D-Sub Connector Assemblies

Mounting Type :

Through Hole

Contact Finish :

Gold

Shell Material, Finish :

Steel, Tin Plated

Material Flammability Rating :

UL94 V-0

Sealable :

No

Preloaded :

yes

Contact Material :

Phosphor Bronze

PCB Mount Retention :

With

Shell Material :

Steel

Mating Connector Lock :

Without

Housing Material :

Glass

Shielding :

Unshielded

Total Number of Contacts :

15

Operating Temperature :

-55°C~105°C

Termination :

Solder

Factory Lead Time :

26 Weeks

Empty Shell :

No

Contact Gender :

Male

Shell Size, Connector Layout :

2 DA A

Flammability Rating :

UL94 V-0

ELV :

Compliant

Color :

Black

Orientation :

Vertical

Mixed Contacts :

No

Series :

AMPLIMITE HDP-20

Dielectric Material :

Polyester, Glass Filled

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

RoHS Compliant

Shell Finish :

Tin

Connector Style :

D-Sub

Flange Feature :

Housing/Shell (Unthreaded)

Pbfree Code :

yes

Pitch :

2.74mm

Connector Type :

Plug, Male Pins

Width :

11.7mm

Published :

2008

Length :

39.2mm

Option :

GENERAL PURPOSE

Feature :

Grounding Indents

Contact Type :

Signal

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Hole Diameter :

5 mm

Lead Length :

3.2mm

Current Rating :

6A

UL Flammability Code :

94V-0

Number of Ports :

1

PCB Thickness :

1.6mm

Plating :

Tin

Mount :

Through Hole

Row Spacing :

2.8448 mm

Depth :

12.6mm

MIL Conformance :

No

Number of Positions :

15

Filter Feature :

No

IEC Conformance :

No

Contact Shape :

Round

JESD-609 Code :

e3

Number of Rows :

2

Packaging :

Tray

DIN Conformance :

No
