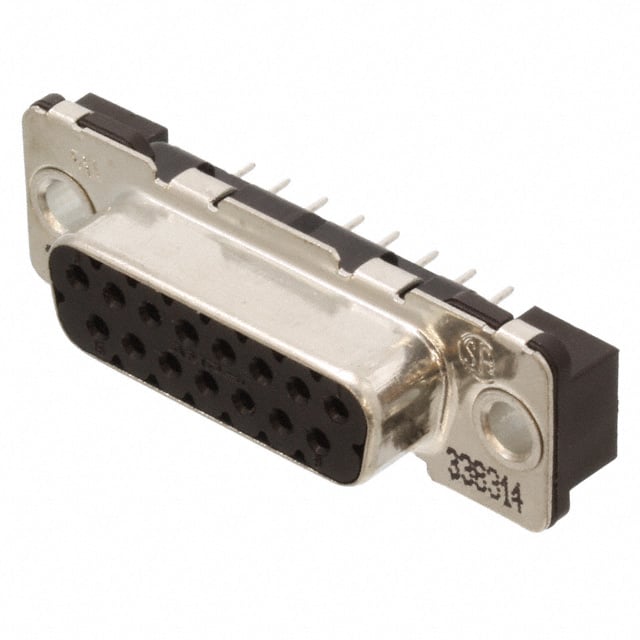

5-338314-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

D-Sub Connector Assemblies

Operating Temperature :

-55°C~105°C

Width :

12.1mm

IEC Conformance :

No

Mount :

Through Hole

Hole Diameter :

5 mm

Reliability :

COMMERCIAL

Lead Length :

3.2mm

Shell Material, Finish :

Steel, Tin Plated

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mixed Contacts :

No

Factory Lead Time :

26 Weeks

Number of Rows :

2

PCB Thickness :

1.6mm

Series :

AMPLIMITE HDP-20

MIL Conformance :

No

Termination :

Solder

Current Rating :

6A

Contact Shape :

Round

Plating :

Tin

Orientation :

Vertical

Row Spacing :

2.8448 mm

Published :

2005

HTS Code :

8536.69.40.30

Number of Positions :

15

Length :

39.2mm

Shielding :

Unshielded

Material Flammability Rating :

UL94 V-0

ECCN Code :

EAR99

Shell Material :

Steel

Preloaded :

yes

Packaging :

Bulk

Contact Material :

Phosphor Bronze

Connector Style :

D-Sub

Mounting Type :

Through Hole

Number of Ports :

1

Depth :

12.4mm

DIN Conformance :

No

PCB Contact Pattern :

STAGGERED

Pbfree Code :

yes

Number Of PCB Rows :

2

Shell Size, Connector Layout :

2 DA A

Dielectric Material :

Polyester, Glass Filled

Gender :

FEMALE

Option :

GENERAL PURPOSE

Mating Connector Lock :

Without

Reference Standard :

UL

RoHS Status :

RoHS Compliant

Contact Finish :

Gold

UL Flammability Code :

94V-0

Pitch :

2.74mm

Total Number of Contacts :

15

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Body Breadth :

0.488 inch

Empty Shell :

No

Color :

Black

Filter Feature :

No

ELV :

Compliant

Flammability Rating :

UL94 V-0

Contact Type :

Signal

Flange Feature :

Housing/Shell (Unthreaded)

Connector Type :

Receptacle, Female Sockets

Housing Material :

Glass

Shell Finish :

Tin

Sealable :

No
