5-338313-2
Or copy the link below:
- Mfr.Part #
- 5-338313-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS VERT SLDR
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- D-Sub Connector Assemblies
- Gender :
- Receptacle
- Series :
- AMPLIMITE HD-20
- PCB Mount Retention :
- Without
- Color :
- Black
- Plating :
- Tin
- Dielectric Material :
- Polyester, Glass Filled
- Width :
- 12.1mm
- Lead Free :
- Lead Free
- Contact Type :
- Signal
- Depth :
- 12.4mm
- Published :
- 2005
- Length :
- 30.9mm
- Number of Positions :
- 9
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Housing Material :
- Glass
- Mounting Type :
- Through Hole
- Flange Feature :
- Housing/Shell (Unthreaded)
- Flammability Rating :
- UL94 V-0
- Shell Material :
- Steel
- Connector Type :
- Receptacle, Female Sockets
- Orientation :
- Vertical
- Connector Style :
- D-Sub
- REACH SVHC :
- No SVHC
- Sealable :
- No
- Shell Size, Connector Layout :
- 1 DE E
- RoHS Status :
- RoHS Compliant
- Circuit Application :
- Signal
- Packaging :
- Tray
- Mating Connector Lock :
- Without
- Contact Plating :
- Gold, Tin
- Number of Ports :
- 1
- PCB Thickness :
- 1.6mm
- Contact Shape :
- Round
- Package / Case :
- Metal
- Housing Color :
- Black
- Number of Contacts :
- 9
- Material :
- Steel
- Operating Temperature :
- -55°C~105°C
- Current Rating :
- 6A
- Voltage - Rated DC :
- 250V
- Body Material :
- Metal
- Contact Material :
- Phosphor Bronze
- Contact Finish :
- Gold
- Shielding :
- Unshielded
- Row Spacing :
- 2.8448 mm
- Shell Material, Finish :
- Steel, Tin Plated
- Preloaded :
- yes
- Number of Rows :
- 2
- PCB Mounting Orientation :
- Vertical
- Factory Lead Time :
- 26 Weeks
- Number of Terminations :
- 9
- Material Flammability Rating :
- UL94 V-0
- Hole Diameter :
- 5 mm
- Current Rating (Amps) :
- 6A
- Lead Length :
- 3.2mm
- Mount :
- Through Hole
- ELV :
- Compliant
- Pitch :
- 2.74mm
- Min Operating Temperature :
- -55°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Max Operating Temperature :
- 105°C
- Datasheets
- 5-338313-2

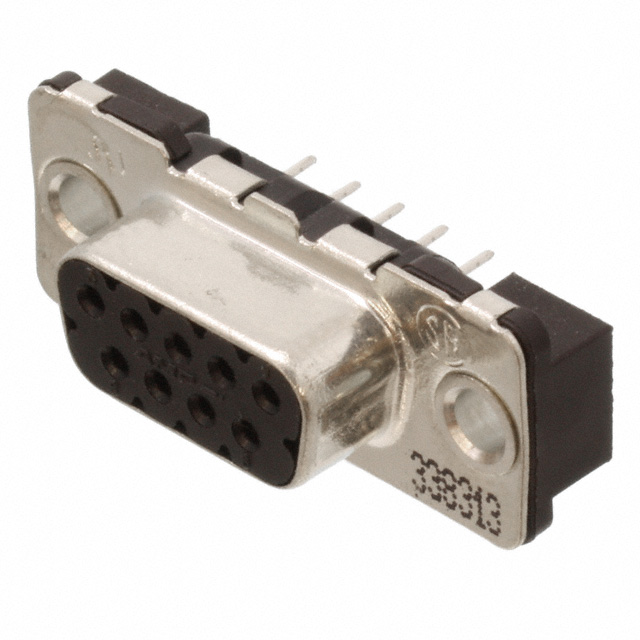

AMPLIMITE HD-20 Series D-Sub Receptacle, Female Sockets 9-Position Receptacle Signal Solder 1 DE E Through Hole Phosphor Bronze Gold Steel, Tin Plated
5-338313-2 Overview
This product is packaged in a Receptacle, Female Sockets box.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number AMPLIMITE HD-20 belongs to the AMPLIMITE HD-20 Series.Whenever the temperature is below 105°C, it's best.There is a minimum temperature requirement of [0°C] for this device.Packaging with Metal contains a device.There are 1 ports available for managing a variety of tasks on this device.There is a Through Hole mount on the part.The chip terminates at 9.This device operates at a temperature of -55°C~105°C.
5-338313-2 Features
9 basic kinds of terminations
AMPLIMITE HD-20 series
5-338313-2 Applications
There are a lot of TE Connectivity AMP Connectors
5-338313-2 D-Sub Connectors applications.
