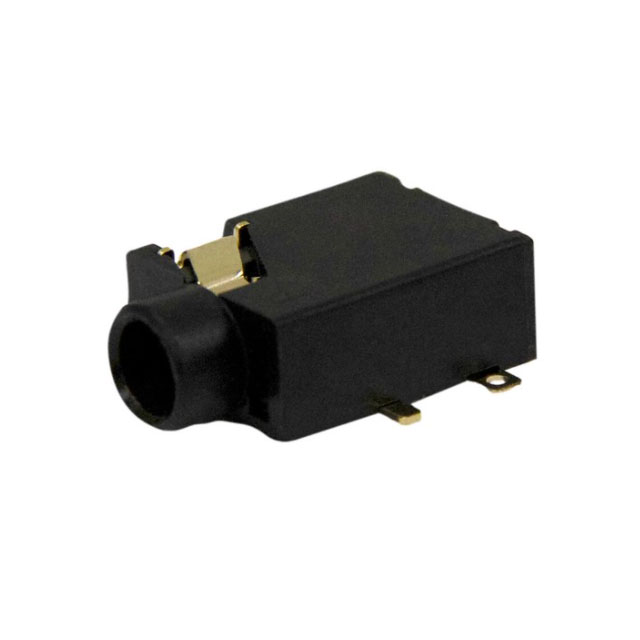

35RASMT4BHWNTRX

Manufacturer :

Switchcraft / Conxall

Product Category :

Audio Connectors

Features :

Board Guide

Orientation :

RIGHT ANGLE

Color :

Black

Switch Configuration :

Switched

Mounting Style :

SMD/SMT

Number of Positions :

3 Position

Panel Hole Size :

-

Internal Switch(s) :

Two Switches

Shielding :

Unshielded

Body Material :

-

Housing Material :

Thermoplastic (TP)

Packaging :

Cut Tape

Cable Opening :

-

Pin Diameter :

-

Standard :

3.5 mm, 1/8 in

ECCN :

EAR99

Termination :

Solder

Signal Lines :

Stereo (3 Conductor, TRS)

Mating Length/Depth :

-

Mounting Type :

Surface Mount, Right Angle

Voltage - Rated :

-

Number of Positions/Contacts :

3 Conductors, 5 Contacts

Series :

35RASM

Operating Temperature :

-

Product Status :

Active

Thread Size :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Actual Diameter :

0.142 (3.60mm)

Includes :

-

Gender :

FEMALE

RoHS :

Details

Connector Type :

Phone Jack

Contact Material - Plating :

Gold

Industry Recognized Mating Diameter :

3.50mm (0.141, 1/8, Mini Plug) - Headphone

Termination Style :

Solder

Contact Plating :

Gold

Contact Material :

COPPER ALLOY

Body Color :

Black

Itar Registered :

Unavailable

Insulation Color :

Black

Accessory Type :

-
