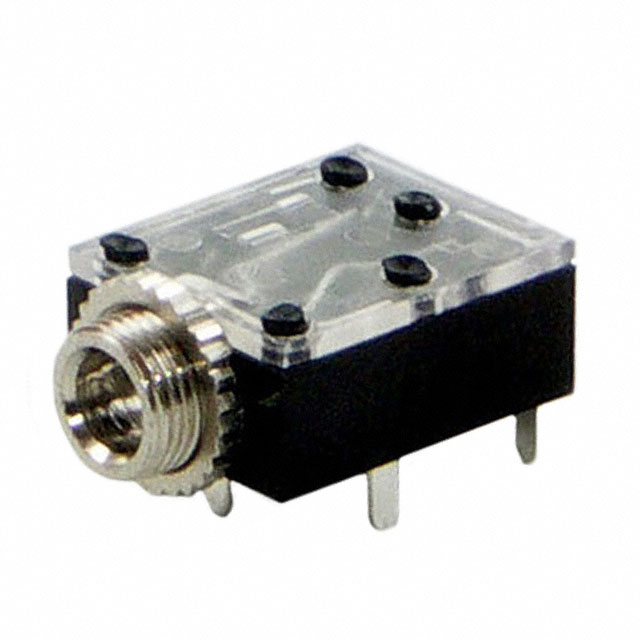

35RAPC3BH3
Or copy the link below:
- Mfr.Part #
- 35RAPC3BH3
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK STEREO 3.5MM R/A
- Stock
- 711
- In Stock ：
- 711
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- RoHS Status :
- ROHS3 Compliant
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Orientation :
- RIGHT ANGLE
- Number of Poles :
- 3
- DIN Conformance :
- No
- Packaging :
- Bulk
- Number of Ports :
- 1
- Shielding :
- Unshielded
- Body Color :
- Silver, Black
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Contact Plating :
- Nickel, Silver
- Connector Type :
- Phone Jack
- Lead Free :
- Lead Free
- Color :
- Black
- Published :
- 2008
- MIL Conformance :
- No
- Industry Recognized Mating Diameter :
- 3.50mm (0.141, 1/8, Mini Plug) - Headphone
- IEC Conformance :
- No
- Number of Terminations :
- 3
- Contact Finish - Mating :
- NOT SPECIFIED
- Contact Material :
- COPPER ALLOY
- Feature :
- Mounting Hardware, Thread Lock
- Signal Lines :
- Stereo (3 Conductor, TRS)
- Actual Diameter :
- 0.142 (3.60mm)
- Voltage - Rated :
- 500V
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Mount :
- Panel, Through Hole
- Contact Material - Plating :
- Silver
- Includes :
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Series :
- 35
- Termination :
- Solder
- Option :
- GENERAL PURPOSE
- Factory Lead Time :
- 12 Weeks
- Body Material :
- Brass
- Internal Switch(s) :
- Single Switch
- Gender :
- FEMALE
- Number of Positions/Contacts :
- 3 Conductors, 4 Contacts
- JESD-609 Code :
- e4
- Datasheets
- 35RAPC3BH3
35RAPC3BH3 Documents
