35RAPC3BHN2

Share

Or copy the link below:

Mfr.Part #

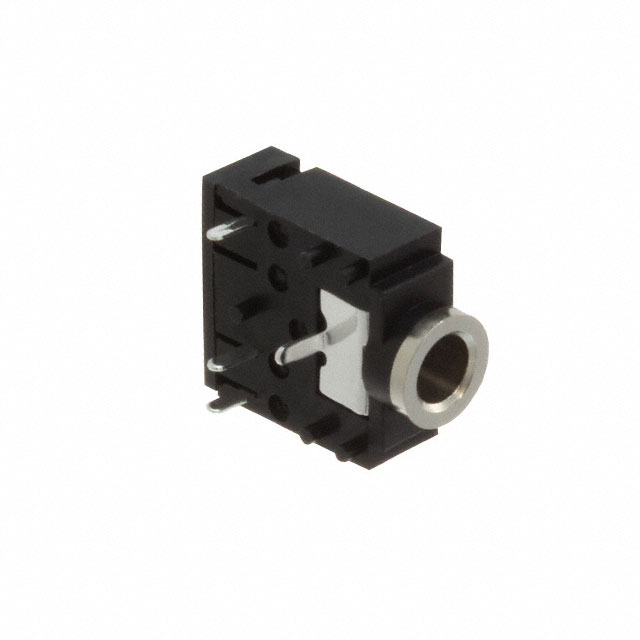

35RAPC3BHN2
Manufacturer
Switchcraft / Conxall
Package / Case
Datasheet
Download
Description
CONN JACK STEREO 3.5MM R/A
Stock
761
In Stock :
761

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Switchcraft / Conxall
Product Category :
Audio Connectors
Reference Standard :
UL
Shielding :
Unshielded
Connector Type :
Phone Jack
MIL Conformance :
No
Contact Plating :
Nickel, Silver
Number of Ports :
1
Durability :
5000 Cycles
Series :
35
IEC Conformance :
No
Gender :
FEMALE
Industry Recognized Mating Diameter :
3.50mm (0.141, 1/8, Mini Plug) - Headphone
Color :
Black
DIN Conformance :
No
Number of Conductors :
ONE
Length - Termination :
0.098 inch
Orientation :
RIGHT ANGLE
Number of Poles :
3
Number of Terminations :
3
Reliability :
COMMERCIAL
Body Material :
Brass
Lead Free :
Lead Free
Mount :
Through Hole
Voltage - Rated :
500V
Body Length or Diameter :
0.472 inch
Termination :
Solder
Contact Style :
RND PIN-SKT
Published :
2005
Dielectric Withstanding Voltage :
500VAC V
Option :
GENERAL PURPOSE
Actual Diameter :
0.142 (3.60mm)
Housing Material :
Polybutylene Terephthalate (PBT)
Factory Lead Time :
12 Weeks
Contact Finish - Mating :
NOT SPECIFIED
Polarization Key :
POLARIZED HOUSING
Signal Lines :
Stereo (3 Conductor, TRS)
Packaging :
Bulk
Contact Material :
COPPER ALLOY
Body Color :
Silver, Black
Contact Material - Plating :
Silver
Internal Switch(s) :
Single Switch
Mounting Type :
Through Hole, Right Angle
RoHS Status :
ROHS3 Compliant
Number of Positions/Contacts :
3 Conductors, 4 Contacts
Moisture Sensitivity Level (MSL) :
Not Applicable
JESD-609 Code :
e4
Introducing Audio Connectors Switchcraft / Conxall 35RAPC3BHN2 from Chip IC,where excellence meets affordability. This product stands out with its Number of Terminations:3, Mounting Type:Through Hole, Right Angle, 35RAPC3BHN2 pinout, 35RAPC3BHN2 datasheet PDF, 35RAPC3BHN2 amp .Beyond Audio Connectors Switchcraft / Conxall 35RAPC3BHN2 ,we also offer RCJ-042, RCJ-2223, 50-00040, Our vast inventory has you covered. Contact us now for immediate solutions.
