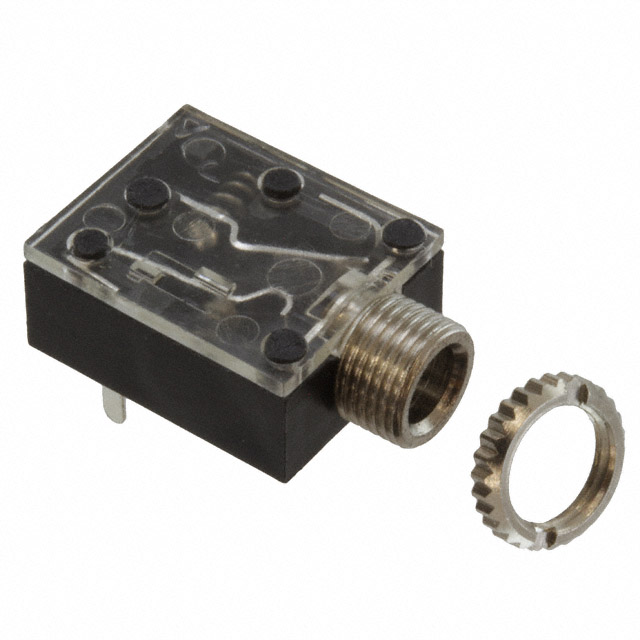

35RAPC2BH3
Or copy the link below:
- Mfr.Part #
- 35RAPC2BH3
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK STEREO 3.5MM R/A
- Stock
- 14,511
- In Stock ：
- 14,511
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- ECCN Code :
- EAR99
- Series :
- 35
- Number of Terminations :
- 5
- Body Color :
- Silver, Black
- Feature :
- Mounting Hardware, Thread Lock
- Actual Diameter :
- 0.142 (3.60mm)
- Color :
- Black
- Connector Type :
- Phone Jack
- MIL Conformance :
- No
- Mount :
- Through Hole
- Number of Poles :
- 3
- Signal Lines :
- Stereo (3 Conductor, TRS)
- Shielding :
- Unshielded
- Packaging :
- Bulk
- Gender :
- FEMALE
- Number of Ports :
- 1
- Number of Positions/Contacts :
- 3 Conductors, 3 Contacts
- Length :
- 11.5mm
- RoHS Status :
- ROHS3 Compliant
- Internal Switch(s) :
- Does Not Contain Switch
- Cable Length :
- 17.5mm
- Industry Recognized Mating Diameter :
- 3.50mm (0.141, 1/8, Mini Plug) - Headphone
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Plating :
- Nickel, Silver
- Contact Finish - Mating :
- NOT SPECIFIED
- Option :
- GENERAL PURPOSE
- IEC Conformance :
- No
- Contact Material - Plating :
- Silver
- Termination :
- Solder
- Contact Material :
- COPPER ALLOY
- JESD-609 Code :
- e4
- Body Material :
- Brass
- Factory Lead Time :
- 12 Weeks
- Lead Free :
- Lead Free
- Depth :
- 17.5mm
- Orientation :
- RIGHT ANGLE
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Published :
- 2008
- Voltage - Rated :
- 250V
- Includes :
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- DIN Conformance :
- No
- Datasheets
- 35RAPC2BH3
