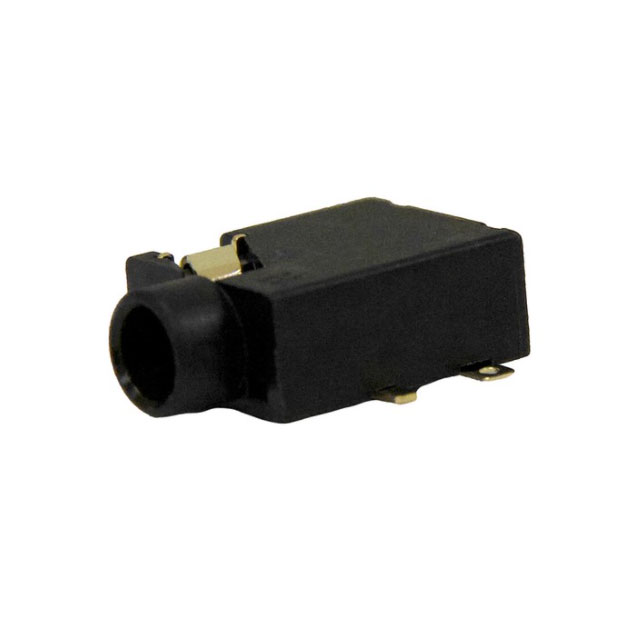

35RASMT3BHWNTRX

Manufacturer :

Switchcraft / Conxall

Product Category :

Audio Connectors

Color :

Black

Body Material :

-

ECCN :

EAR99

Gender :

FEMALE

Mounting Type :

Surface Mount, Right Angle

Number of Positions/Contacts :

3 Conductors, 4 Contacts

Packaging :

Cut Tape

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Series :

35RASM

Number of Positions :

3 Position

Operating Temperature :

-

Pin Diameter :

-

Housing Material :

Thermoplastic (TP)

Insulation Color :

Black

Includes :

-

Thread Size :

-

Mating Length/Depth :

-

Connector Type :

Phone Jack

Features :

Board Guide

Actual Diameter :

0.142 (3.60mm)

Contact Plating :

Gold

Standard :

3.5 mm, 1/8 in

RoHS :

Details

Panel Hole Size :

-

Accessory Type :

-

Orientation :

RIGHT ANGLE

Industry Recognized Mating Diameter :

3.50mm (0.141, 1/8, Mini Plug) - Headphone

Body Color :

Black

Contact Material - Plating :

Gold

Product Status :

Active

Switch Configuration :

Switched

Mounting Style :

SMD/SMT

Cable Opening :

-

Voltage Rating :

250 V

Voltage - Rated :

-

Internal Switch(s) :

Single Switch

Contact Material :

COPPER ALLOY

Itar Registered :

Unavailable

Termination :

Solder

Signal Lines :

Stereo (3 Conductor, TRS)

Shielding :

Unshielded

Termination Style :

Solder
