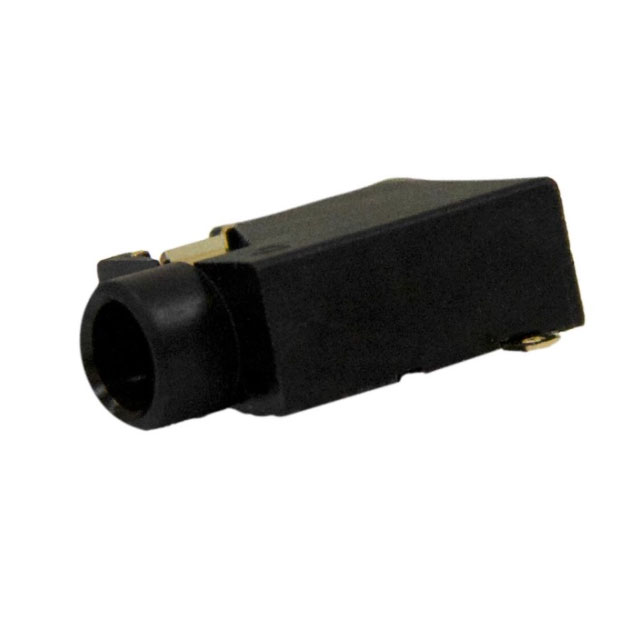

35RASMT2BHWNTRX

Manufacturer :

Switchcraft / Conxall

Product Category :

Audio Connectors

Thread Size :

-

Features :

Board Guide

Number of Positions :

3 Position

Internal Switch(s) :

Does Not Contain Switch

Housing Material :

Thermoplastic (TP)

Orientation :

RIGHT ANGLE

Body Material :

-

Insulation Color :

Black

Contact Material - Plating :

Gold

Mounting Type :

Surface Mount, Right Angle

Gender :

FEMALE

Body Color :

Black

Standard :

3.5 mm, 1/8 in

Series :

35RASM

RoHS :

Details

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Switch Configuration :

Not Switched

Termination Style :

Solder

Signal Lines :

Stereo (3 Conductor, TRS)

Accessory Type :

-

Packaging :

Cut Tape

Contact Material :

COPPER ALLOY

Mounting Style :

SMD/SMT

Operating Temperature :

-

Industry Recognized Mating Diameter :

3.50mm (0.141, 1/8, Mini Plug) - Headphone

Termination :

Solder

Itar Registered :

Unavailable

Color :

Black

Cable Opening :

-

Number of Positions/Contacts :

3 Conductors, 3 Contacts

Actual Diameter :

0.142 (3.60mm)

Mating Length/Depth :

-

ECCN :

EAR99

Includes :

-

Contact Plating :

Gold

Shielding :

Unshielded

Product Status :

Active

Panel Hole Size :

-

Connector Type :

Phone Jack

Voltage - Rated :

-

Pin Diameter :

-
