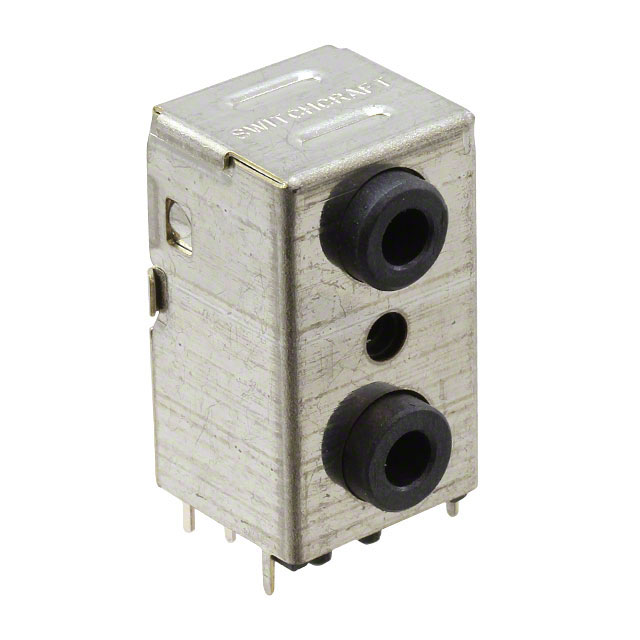

35RAPC7JS
Or copy the link below:
- Mfr.Part #
- 35RAPC7JS
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK STEREO 3.5MM R/A
- Stock
- 11,127
- In Stock ：
- 11,127
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- Actual Diameter :
- 0.142 (3.60mm)
- Body Color :
- Silver, Black
- Contact Material :
- COPPER ALLOY
- Contact Material - Plating :
- Silver
- JESD-609 Code :
- e4
- Number of Ports :
- 2
- Contact Finish - Mating :
- NOT SPECIFIED
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- IEC Conformance :
- No
- Mount :
- PCB, Through Hole
- Height :
- 26.7mm
- Factory Lead Time :
- 8 Weeks
- Orientation :
- RIGHT ANGLE
- MIL Conformance :
- No
- Number of Positions/Contacts :
- 2 Sets of 3 Conductors, 8 Contacts
- Voltage - Rated :
- 500V
- Mounting Type :
- Through Hole, Right Angle
- Industry Recognized Mating Diameter :
- 3.50mm (0.141, 1/8, Mini Plug) - Headphone
- Lead Free :
- Lead Free
- Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- Number of Poles :
- 3
- Depth :
- 16.1mm
- Packaging :
- Bulk
- Termination :
- Solder
- Series :
- 35
- Color :
- Black
- RoHS Status :
- ROHS3 Compliant
- Signal Lines :
- Stereo (3 Conductor, TRS)
- Number of Contacts :
- 3
- Internal Switch(s) :
- Two Switches
- Shielding :
- Shielded
- Number of Terminations :
- 6
- Connector Type :
- Phone Jack, Dual
- Published :
- 2006
- Gender :
- FEMALE
- Length :
- 15mm
- Option :
- GENERAL PURPOSE
- Body Material :
- COPPER ALLOY
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Datasheets
- 35RAPC7JS
