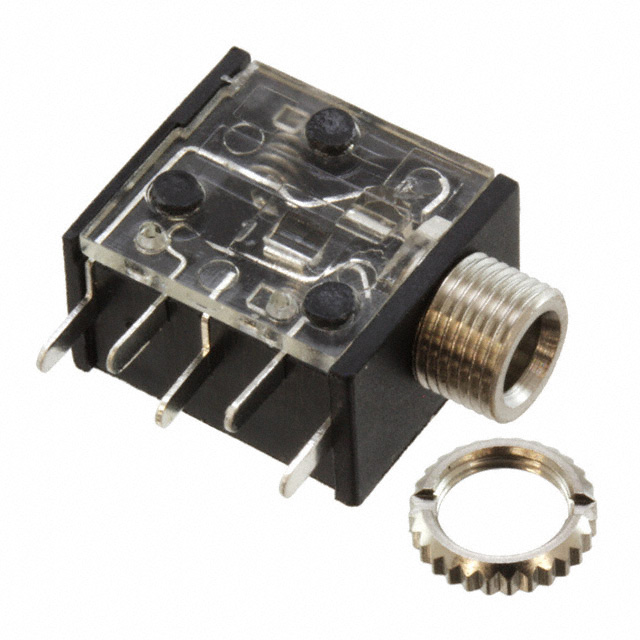

35RAPC4BV4
Or copy the link below:
- Mfr.Part #
- 35RAPC4BV4
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK STEREO 3.5MM R/A
- Stock
- 736
- In Stock ：
- 736
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- Shielding :
- Unshielded
- RoHS Status :
- ROHS3 Compliant
- Pbfree Code :
- yes
- Number of Conductors :
- ONE
- Contact Plating :
- Tin
- Number of Ports :
- 1
- Contact Finish - Mating :
- NOT SPECIFIED
- Depth :
- 18.5mm
- REACH SVHC :
- No SVHC
- Body Color :
- Silver, Black
- Number of Contacts :
- 3
- Orientation :
- RIGHT ANGLE
- Body Material :
- Brass
- Actual Diameter :
- 0.142 (3.60mm)
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Connector Type :
- Phone Jack
- Contact Material - Plating :
- Silver
- Color :
- Black
- Series :
- 35
- IEC Conformance :
- No
- Contact Resistance :
- 20mOhm
- Additional Feature :
- STANDARD: 94V-0, POLYETHYLENE
- Feature :
- Mounting Hardware, Thread Lock
- Number of Positions/Contacts :
- 3 Conductors, 5 Contacts
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Mount :
- PCB, Through Hole
- Packaging :
- Bulk
- Includes :
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Contact Material :
- COPPER ALLOY
- Height :
- 12.573mm
- Reference Standard :
- UL
- Number of Poles :
- 3
- Reliability :
- COMMERCIAL
- Industry Recognized Mating Diameter :
- 3.50mm (0.141, 1/8, Mini Plug) - Headphone
- Termination :
- Solder
- Diameter :
- 3.5mm
- Internal Switch(s) :
- Two Switches
- Manufacturer Package Identifier :
- 35RAPC4BV4
- Gender :
- FEMALE
- DIN Conformance :
- No
- Outside Diameter :
- 3.5 mm
- MIL Conformance :
- No
- Option :
- GENERAL PURPOSE
- Signal Lines :
- Stereo (3 Conductor, TRS)
- JESD-609 Code :
- e4
- Lead Free :
- Lead Free
- Housing Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Length :
- 8.1mm
- Number of Terminations :
- 5
- Published :
- 2000
- Factory Lead Time :
- 12 Weeks
- Voltage - Rated :
- 500V
- Datasheets
- 35RAPC4BV4
