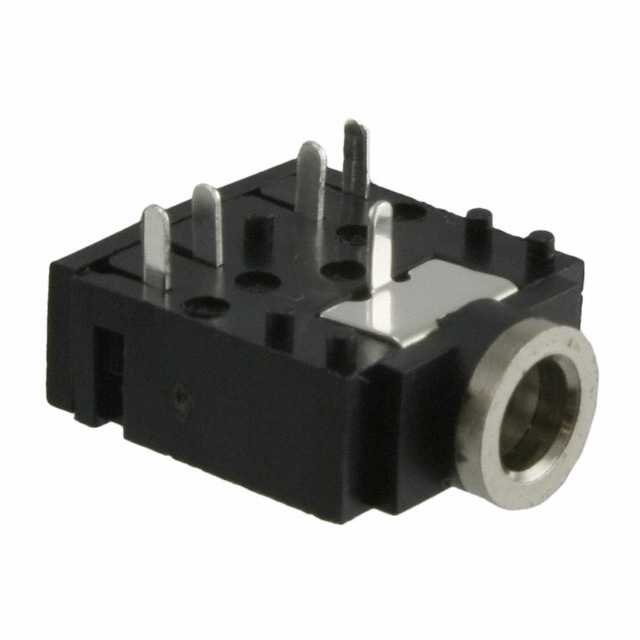

35RAPC4BHN2
Or copy the link below:
- Mfr.Part #
- 35RAPC4BHN2
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK STEREO 3.5MM R/A
- Stock
- 4,271
- In Stock ：
- 4,271
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- Body Material :
- Brass
- DIN Conformance :
- No
- Reliability :
- COMMERCIAL
- Voltage - Rated :
- 500V
- Factory Lead Time :
- 8 Weeks
- Number of Poles :
- 3
- Mount :
- PCB, Through Hole
- Polarization Key :
- POLAR PIN POSITION
- Connector Type :
- Phone Jack
- Cable Length :
- 14mm
- Depth :
- 15mm
- Number of Contacts :
- 3
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- REACH SVHC :
- No SVHC
- Flammability Rating :
- UL94 V-0
- Reference Standard :
- UL
- Gender :
- FEMALE
- Contact Material - Plating :
- Silver
- Height :
- 6mm
- Industry Recognized Mating Diameter :
- 3.50mm (0.141, 1/8, Mini Plug) - Headphone
- Option :
- GENERAL PURPOSE
- Number of Ports :
- 1
- Internal Switch(s) :
- Two Switches
- RoHS Status :
- ROHS3 Compliant
- Orientation :
- RIGHT ANGLE
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Color :
- Black
- Number of Terminations :
- 5
- Actual Diameter :
- 0.142 (3.60mm)
- Number of Positions/Contacts :
- 3 Conductors, 5 Contacts
- Lead Free :
- Lead Free
- Signal Lines :
- Stereo (3 Conductor, TRS)
- JESD-609 Code :
- e4
- Termination :
- Solder
- Packaging :
- Bulk
- Mounting Type :
- Through Hole, Right Angle
- ECCN Code :
- EAR99
- Contact Style :
- RND PIN-SKT
- IEC Conformance :
- No
- Body Color :
- Silver, Black
- Series :
- 35
- Published :
- 1998
- MIL Conformance :
- No
- Number of Conductors :
- ONE
- Contact Material :
- COPPER ALLOY
- Length :
- 12mm
- Contact Finish - Mating :
- NOT SPECIFIED
- Shielding :
- Unshielded
- Datasheets
- 35RAPC4BHN2
