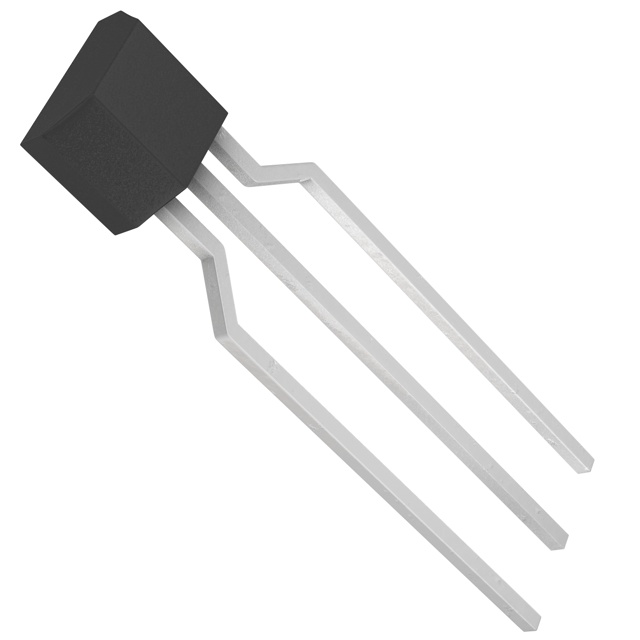

2SC1741STPR
Or copy the link below:
- Mfr.Part #
- 2SC1741STPR
- Manufacturer
- ROHM Semiconductor
- Package / Case
- SC-72 Formed Leads
- Datasheet
- Download
- Description
- TRANS NPN 32V 0.5A SPT
- Stock
- 1,492
- In Stock ：
- 1,492
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ROHM Semiconductor
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Time@Peak Reflow Temperature-Max (s) :
- 10
- Transistor Type :
- NPN
- Peak Reflow Temperature (Cel) :
- 260
- Transistor Application :
- SWITCHING
- Number of Pins :
- 3
- Transition Frequency :
- 250MHz
- Current Rating :
- 500mA
- HTS Code :
- 8541.21.00.75
- Transistor Element Material :
- SILICON
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 180 @ 100mA 3V
- Element Configuration :
- Single
- Collector Emitter Voltage (VCEO) :
- 600mV
- Max Power Dissipation :
- 300mW
- JESD-609 Code :
- e1
- Emitter Base Voltage (VEBO) :
- 5V
- Lead Free :
- Lead Free
- Packaging :
- Tape and Box (TB)
- Number of Terminations :
- 3
- Gain Bandwidth Product :
- 250MHz
- Published :
- 2004
- Mount :
- Through Hole
- Qualification Status :
- Not Qualified
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal Finish :
- TIN SILVER COPPER
- Voltage - Rated DC :
- 32V
- hFE Min :
- 180
- RoHS Status :
- ROHS3 Compliant
- Pin Count :
- 3
- Package / Case :
- SC-72 Formed Leads
- Polarity/Channel Type :
- NPN
- Max Collector Current :
- 500mA
- Collector Emitter Breakdown Voltage :
- 32V
- Current - Collector Cutoff (Max) :
- 1μA ICBO
- Vce Saturation (Max) @ Ib, Ic :
- 600mV @ 50mA, 500mA
- Mounting Type :
- Through Hole
- Number of Elements :
- 1
- ECCN Code :
- EAR99
- Collector Base Voltage (VCBO) :
- 40V
- Operating Temperature :
- 150°C TJ
- Datasheets
- 2SC1741STPR
2SC1741STPR Documents
NPN 150°C TJ 1μA ICBO 1 Elements 3 Terminations SILICON NPN SC-72 Formed Leads Tape & Box (TB) Through Hole
2SC1741STPR Overview
This device has a DC current gain of 180 @ 100mA 3V, which is the ratio between the collector current and the base current.A VCE saturation indicates a maximum value of Ic (saturation), and a maximum value of VCE saturation (Max).The base voltage of the emitter can be kept at 5V to achieve high efficiency.Normally, a fuse's current rating refers to how much current it can carry without deteriorating too much, which in this case is 500mA.In this part, there is a transition frequency of 250MHz.The maximum collector current is 500mA volts.
2SC1741STPR Features
the DC current gain for this device is 180 @ 100mA 3V
the vce saturation(Max) is 600mV @ 50mA, 500mA
the emitter base voltage is kept at 5V
the current rating of this device is 500mA
a transition frequency of 250MHz
2SC1741STPR Applications
There are a lot of ROHM Semiconductor
2SC1741STPR applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
