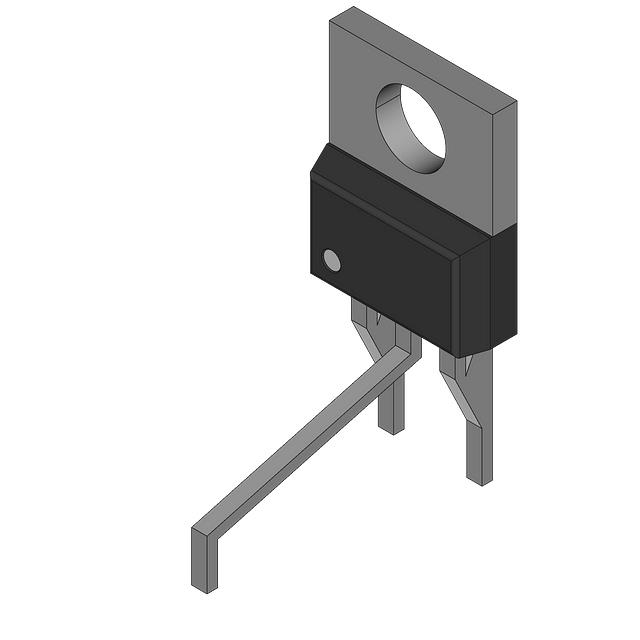

2N5194G

Manufacturer :

onsemi

Product Category :

Transistors - Bipolar (BJT) - Single

Transistor Element Material :

SILICON

Collector Emitter Breakdown Voltage :

60V

Height :

11.0998mm

Peak Reflow Temperature (Cel) :

260

Packaging :

Bulk

Transistor Application :

SWITCHING

Base Part Number :

2N5194

Surface Mount :

No

Halogen Free :

Halogen Free

Pin Count :

3

Weight :

4.535924g

Package / Case :

TO-225AA, TO-126-3

Vce Saturation (Max) @ Ib, Ic :

1.4V @ 1A, 4A

Power Dissipation :

40W

Terminal Finish :

Tin (Sn)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Time@Peak Reflow Temperature-Max (s) :

40

Collector Emitter Voltage (VCEO) :

60V

Transistor Type :

PNP

JESD-609 Code :

e3

Emitter Base Voltage (VEBO) :

5V

Number of Elements :

1

Frequency :

2MHz

ECCN Code :

EAR99

Current - Collector Cutoff (Max) :

1mA

Number of Terminations :

3

Pbfree Code :

yes

Operating Temperature :

-65°C~150°C TJ

Max Collector Current :

4A

Lead Free :

Lead Free

Collector Emitter Saturation Voltage :

1.4V

Current Rating :

-4A

Element Configuration :

Single

Voltage - Rated DC :

-60V

Transition Frequency :

2MHz

Number of Pins :

3

Max Power Dissipation :

40W

Lifecycle Status :

LAST SHIPMENTS (Last Updated: 4 days ago)

Gain Bandwidth Product :

2MHz

Mounting Type :

Through Hole

DC Current Gain (hFE) (Min) @ Ic, Vce :

25 @ 1.5A 2V

Collector Base Voltage (VCBO) :

60V

Width :

2.9972mm

Published :

2000

Factory Lead Time :

2 Weeks

REACH SVHC :

No SVHC

RoHS Status :

RoHS Compliant

hFE Min :

25

Radiation Hardening :

No

Polarity/Channel Type :

PNP

Length :

7.7978mm
