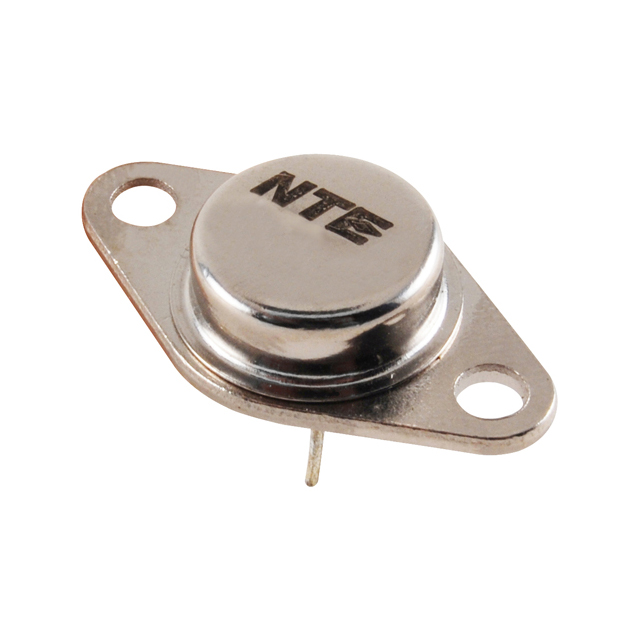

2N3584

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

Additional Feature :

High Reliability

Pin Count :

2

Configuration :

Single

Transition Frequency :

10MHz

Lifecycle Status :

IN PRODUCTION (Last Updated: 3 weeks ago)

Min Operating Temperature :

-65°C

Polarity/Channel Type :

NPN

Number of Elements :

1

Max Operating Temperature :

200°C

Pbfree Code :

No

Radiation Hardening :

No

JEDEC-95 Code :

TO-66

RoHS Status :

Non-RoHS Compliant

Number of Pins :

3

Max Collector Current :

2A

Collector Base Voltage (VCBO) :

375V

Mount :

Through Hole

Packaging :

Bulk

Terminal Form :

PIN/PEG

Terminal Position :

BOTTOM

Case Connection :

COLLECTOR

JESD-609 Code :

e0

JESD-30 Code :

O-MBFM-P2

Collector Emitter Voltage (VCEO) :

250V

Terminal Finish :

Tin/Lead (Sn/Pb)

Number of Terminations :

2

Published :

2007

Max Power Dissipation :

2.5W

ECCN Code :

EAR99

Factory Lead Time :

12 Weeks

Transistor Application :

SWITCHING

DC Current Gain-Min (hFE) :

25
