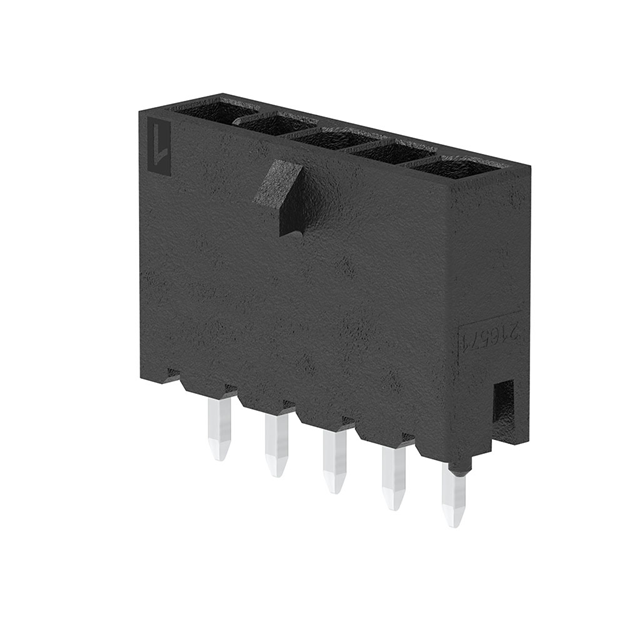

2165712005
Or copy the link below:
- Mfr.Part #
- 2165712005
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- MICRO-FIT PLUS SR VT HDR ASSY 15
- Stock
- 10,088
- In Stock ：
- 10,088
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Length - Mating :
- -
- Operating Temperature :
- -40°C ~ 105°C
- Minimum Operating Temperature :
- - 40 C
- Tradename :
- Micro-Fit+
- Housing Gender :
- Receptacle
- Connector Type :
- Header
- Insulation Color :
- Black
- Mounting Type :
- Through Hole
- Mated Stacking Heights :
- -
- Overall Contact Length :
- -
- Fastening Type :
- Locking Ramp
- Mounting Style :
- PCB Mount
- Base Product Number :
- 216571
- Application :
- Power, Wire-to-Board
- Series :
- 216571
- Current Rating :
- 13 A
- Packaging :
- Tray
- RoHS :
- Details
- Insulation Resistance :
- 1000 MOhms
- Insulation Height :
- 0.390 (9.91mm)
- Number of Positions :
- 5 Position
- Housing Color :
- Black
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Contact Type :
- Male Pin
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Mating :
- 15.0μin (0.38μm)
- Flammability Rating :
- UL 94 V-0
- Row Spacing - Mating :
- -
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- -
- Mounting Angle :
- Straight
- Current Rating (Amps) :
- Varies by Wire Gauge
- Maximum Operating Temperature :
- + 105 C
- Type :
- Micro-Fit PCB Headers
- Contact Material :
- COPPER ALLOY
- Contact Plating :
- Gold
- Termination Style :
- Solder Pin
- Voltage Rating :
- 600 VAC/VDC
- Package :
- Tray
- Number of Rows :
- 1 Row
- Product :
- Headers
- Pitch - Mating :
- 0.118 (3.00mm)
- Contact Length - Post :
- 0.125 (3.18mm)
- Product Status :
- Active
- Contact Shape :
- Square
- Features :
- Board Guide, Glow Wire Compliant
- Pitch :
- 3 mm
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Ingress Protection :
- -
- Contact Finish - Mating :
- Gold
- Termination :
- Solder
- Style :
- Board to Cable/Wire
- Number of Positions Loaded :
- All
- Applications :
- -
- Shrouding :
- Shrouded - 4 Wall
- Datasheets
- 2165712005
2165712005 Documents
1 Row Rows Header Tray 5 Position Positions Through Hole Male Pin 216571 Liquid Crystal Polymer (LCP)
216571-2005 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the 216571 Series of products.
216571-2005 Features
216571 series
216571-2005 Applications
There are a lot of Molex
216571-2005 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
