215309-8
Or copy the link below:
- Mfr.Part #
- 215309-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 16POS 0.1 GOLD PCB
- Stock
- 19
- In Stock ：
- 19
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- IEC Conformance :
- No
- Number of Positions :
- 16
- Contact Type :
- Female Socket
- Pitch - Mating :
- 0.100 2.54mm
- Body Breadth :
- 0.199 inch
- Connector Type :
- Receptacle
- PCB Mount Retention :
- With
- Packaging :
- Tray
- Pbfree Code :
- yes
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- PCB Thickness :
- 1.6mm
- Flammability Rating :
- UL94 V-0
- Contact Finish - Post :
- Tin
- Number of Rows :
- 2
- Length - Tail :
- 3.1mm
- Insulation Resistance :
- 5000000000Ohm
- Number of Conductors :
- ONE
- Mating Contact Pitch :
- 0.1 inch
- RoHS Status :
- RoHS Compliant
- Height :
- 8.5mm
- Reference Standard :
- UL
- DIN Conformance :
- No
- Mounting Type :
- Through Hole
- Contact Resistance :
- 12mOhm
- Max Operating Temperature :
- 105°C
- Orientation :
- Vertical
- PCB Contact Pattern :
- RECTANGULAR
- Published :
- 2008
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Contact Finish - Mating :
- Gold
- Stackable :
- yes
- Insulation Material :
- Polyester, Glass Filled
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Option :
- GENERAL PURPOSE
- Depth :
- 5.06mm
- HTS Code :
- 8536.69.40.40
- Fastening Type :
- Push-Pull
- Contact Length - Post :
- 0.122 3.10mm
- Dielectric Withstanding Voltage :
- 750VAC V
- Series :
- AMPMODU HV-100
- Reliability :
- COMMERCIAL
- Contact Finish Thickness - Mating :
- 31.5μin 0.80μm
- Lead Length :
- 3.1mm
- Mixed Contacts :
- No
- MIL Conformance :
- No
- ECCN Code :
- EAR99
- JESD-609 Code :
- e3
- Insulation Height :
- 0.335 8.51mm
- Contact Plating :
- Gold, Tin
- Housing Material :
- Polyester
- Housing Color :
- Black
- Style :
- Board to Board
- Min Operating Temperature :
- -55°C
- Sealable :
- No
- Contact Current Rating :
- 3A
- Plating Thickness :
- 31μin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number Of PCB Rows :
- 2
- Insulation Color :
- Green
- Factory Lead Time :
- 31 Weeks
- Contact Material :
- Phosphor Bronze
- Mount :
- Through Hole
- Length :
- 20.32mm
- Termination :
- Kinked Pin, Solder
- Contact Shape :
- Square
- Current Rating :
- 3A
- Filter Feature :
- No
- ELV :
- Compliant
- UL Flammability Code :
- 94V-0
- Datasheets
- 215309-8

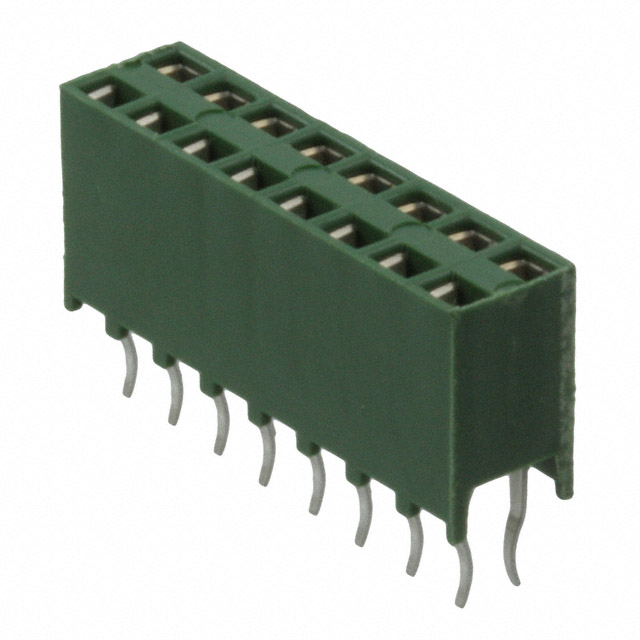

2 Rows Receptacle Kinked Pin, Solder Phosphor Bronze Through Hole Tray Gold Polyester, Glass Filled 16 Positions Female Socket
215309-8 Overview
You get it in Receptacle packaging.Mounting type Through Hole is selected for the device.Packaged in a Tray case.A member of the AMPMODU HV-100 Series.Using it at a temperature below 105°C is ideal.A minimum temperature of -55°C is needed for this device.There's a Through Hole mount on the part.
215309-8 Features
AMPMODU HV-100 series
215309-8 Applications
There are a lot of TE Connectivity AMP Connectors
215309-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
