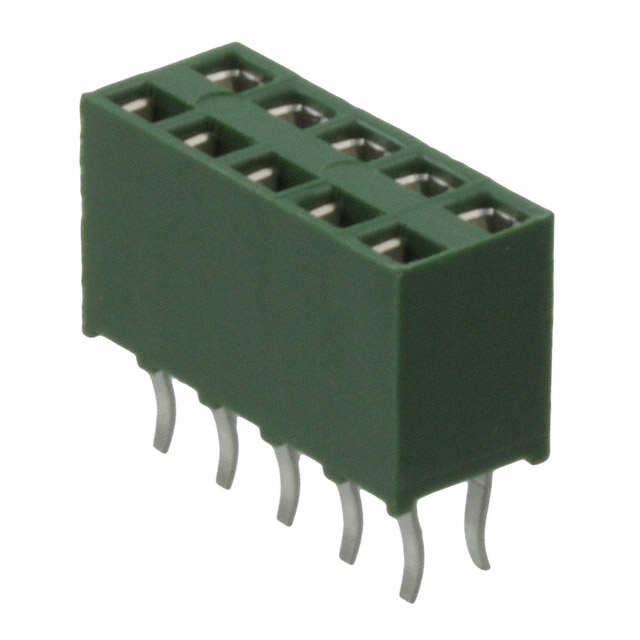

215307-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Receptacles, Female Sockets

Additional Feature :

Top Entry

Row Spacing - Mating :

0.100 (2.54mm)

Reliability :

COMMERCIAL

Style :

Board to Board

RoHS Status :

RoHS Compliant

Mounting Type :

Through Hole

Insulation Color :

Green

Contact Shape :

Square

Material Flammability Rating :

UL94 V-0

Published :

2005

Rated Current (Signal) :

3A

Connector Type :

Receptacle

Number of Positions Loaded :

All

Insulation Resistance :

5000000000Ohm

Fastening Type :

Push-Pull

Length - Termination :

0.118 inch

MIL Conformance :

No

HTS Code :

8536.69.40.40

Termination :

Kinked Pin, Solder

Filter Feature :

No

JESD-609 Code :

e3

Operating Temperature (Min) :

-65°C

Reference Standard :

UL

Insulation Material :

Polyester, Glass Filled

Contact Material :

Phosphor Bronze

Contact Type :

Female Socket

Pbfree Code :

yes

Contact Finish Thickness - Post :

98.4μin 2.50μm

PCB Contact Pattern :

RECTANGULAR

Contact Finish - Post :

Tin

Series :

AMPMODU HV-100

Contact Finish Thickness - Mating :

31.5μin 0.80μm

IEC Conformance :

No

Insulation Height :

0.276 7.00mm

Pitch - Mating :

0.100 2.54mm

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Body Length or Diameter :

0.5 inch

Plating Thickness :

31μin

UL Flammability Code :

94V-0

Number of Positions :

10

Number Of PCB Rows :

2

Contact Finish - Mating :

Gold

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

2

Number of Conductors :

ONE

DIN Conformance :

No

Dielectric Withstanding Voltage :

750VAC V

Body Breadth :

0.199 inch

Factory Lead Time :

31 Weeks

ECCN Code :

EAR99

Mating Contact Pitch :

0.1 inch

Packaging :

Tray

Contact Length - Post :

0.122 3.10mm
