215307-9
Or copy the link below:
- Mfr.Part #
- 215307-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 18POS 0.1 GOLD PCB
- Stock
- 5,923
- In Stock ：
- 5,923
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Max Operating Temperature :
- 105°C
- Additional Feature :
- Top Entry
- Contact Resistance :
- 12mOhm
- Factory Lead Time :
- 31 Weeks
- Insulation Material :
- Polyester, Glass Filled
- DIN Conformance :
- No
- Insulation Resistance :
- 5000000000Ohm
- Number of Conductors :
- ONE
- Mixed Contacts :
- No
- Option :
- GENERAL PURPOSE
- Reference Standard :
- UL
- Contact Finish Thickness - Mating :
- 31.5μin 0.80μm
- PCB Contact Pattern :
- RECTANGULAR
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Number Of PCB Rows :
- 2
- Contact Type :
- Female Socket
- JESD-609 Code :
- e3
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Insulation Color :
- Green
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Sealable :
- No
- Style :
- Board to Board
- Mount :
- Through Hole
- Orientation :
- Vertical
- HTS Code :
- 8536.69.40.40
- Number of Positions :
- 18
- Plating Thickness :
- 31μin
- Packaging :
- Tray
- Reliability :
- COMMERCIAL
- Depth :
- 5.06mm
- Current Rating :
- 27A
- Mounting Type :
- Through Hole
- Connector Type :
- Receptacle
- Contact Current Rating :
- 3A
- Contact Shape :
- Square
- Height :
- 7mm
- Number of Rows :
- 2
- Contact Gender :
- FEMALE
- Contact Length - Post :
- 0.122 3.10mm
- ECCN Code :
- EAR99
- Length :
- 22.86mm
- Lead Length :
- 3.1mm
- Housing Color :
- Black
- Rated Current (Signal) :
- 3A
- Filter Feature :
- No
- PCB Mount Retention :
- With
- Pbfree Code :
- yes
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Kinked Pin, Solder
- PCB Thickness :
- 1.6mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ELV :
- Compliant
- Pitch - Mating :
- 0.100 2.54mm
- Housing Material :
- Polyester
- Contact Finish - Post :
- Tin
- Body Breadth :
- 0.199 inch
- Dielectric Withstanding Voltage :
- 750VAC V
- Contact Plating :
- Tin, Gold
- Min Operating Temperature :
- -55°C
- Mating Contact Pitch :
- 0.1 inch
- Stackable :
- yes
- UL Flammability Code :
- 94V-0
- MIL Conformance :
- No
- Series :
- AMPMODU HV-100
- Length - Tail :
- 3.1mm
- Contact Material :
- Phosphor Bronze
- Insulation Height :
- 0.276 7.00mm
- Contact Finish - Mating :
- Gold
- Flammability Rating :
- UL94 V-0
- IEC Conformance :
- No
- Published :
- 2008
- RoHS Status :
- RoHS Compliant
- Fastening Type :
- Push-Pull
- Datasheets
- 215307-9

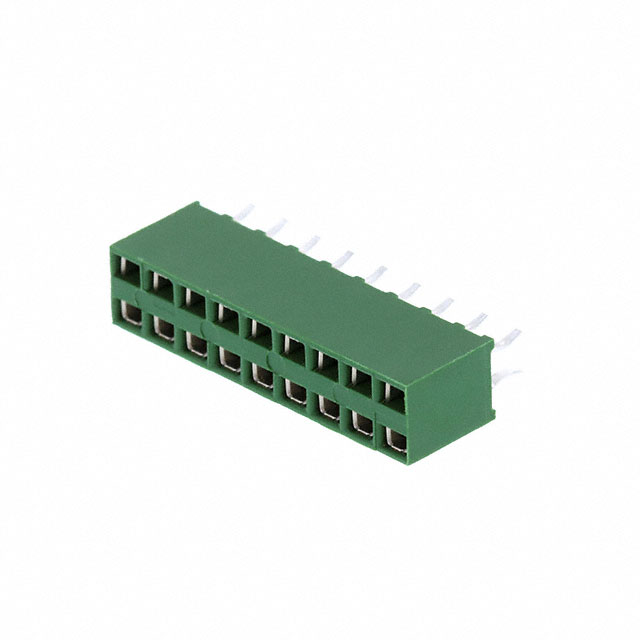

2 Rows Receptacle Kinked Pin, Solder Phosphor Bronze Through Hole Tray Gold Polyester, Glass Filled 18 Positions Female Socket
215307-9 Overview
This product is packaged in a Receptacle box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the AMPMODU HV-100 Series.Furthermore, there are other features such as TOP ENTRY, to name a few.Use it below 105°C.A minimum temperature of -55°C must be maintained for the operation of this device.By Through Hole, the part is mounted.
215307-9 Features
AMPMODU HV-100 series
215307-9 Applications
There are a lot of TE Connectivity AMP Connectors
215307-9 Rectangular Connectors applications.
