215307-3

Share

Or copy the link below:

Mfr.Part #
215307-3
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RCPT 6POS 0.1 GOLD PCB
Stock
3,600
In Stock :
3,600

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Receptacles, Female Sockets
Option :
GENERAL PURPOSE
Min Operating Temperature :
-55°C
Contact Shape :
Square
Number of Conductors :
ONE
Insulation Material :
Polyester, Glass Filled
Additional Feature :
Top Entry
Contact Current Rating :
3A
Lifecycle Status :
ACTIVE (Last Updated: 1 day ago)
Pitch - Mating :
0.100 2.54mm
Contact Finish - Mating :
Gold
Mount :
Through Hole
Style :
Board to Board
MIL Conformance :
No
Max Operating Temperature :
105°C
Contact Finish Thickness - Mating :
31.5μin 0.80μm
IEC Conformance :
No
Filter Feature :
No
Current Rating :
3A
Published :
2005
Housing Color :
Black
Reference Standard :
UL
Series :
AMPMODU HV-100
Rated Current (Signal) :
3A
PCB Contact Pattern :
RECTANGULAR
Contact Plating :
Gold, Tin
Number of Rows :
2
Contact Finish Thickness - Post :
98.4μin 2.50μm
Depth :
5.06mm
Mounting Type :
Through Hole
Dielectric Withstanding Voltage :
750VAC V
ELV :
Compliant
Mixed Contacts :
No
PCB Mount Retention :
With
Height :
7mm
Body Breadth :
0.199 inch
Contact Length - Post :
0.122 3.10mm
Orientation :
Vertical
Number of Contacts :
3
Stackable :
yes
Insulation Resistance :
5000000000Ohm
Insulation Height :
0.276 7.00mm
Mating Contact Pitch :
0.1 inch
Factory Lead Time :
31 Weeks
Row Spacing - Mating :
0.100 (2.54mm)
Flammability Rating :
UL94 V-0
Insulation Color :
Green
Lead Length :
3.1mm
PCB Thickness :
1.6mm
Length - Tail :
3.1mm
Number of Positions Loaded :
All
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Length :
7.62mm
Contact Material :
Phosphor Bronze
RoHS Status :
RoHS Compliant
Termination :
Kinked Pin, Solder
Number Of PCB Rows :
2
ECCN Code :
EAR99
Material Flammability Rating :
UL94 V-0
Packaging :
Tray
Contact Resistance :
12mOhm
DIN Conformance :
No
Pbfree Code :
yes
Number of Positions :
6
Connector Type :
Receptacle
JESD-609 Code :
e3
Contact Finish - Post :
Tin
Sealable :
No
UL Flammability Code :
94V-0
Contact Type :
Female Socket
Reliability :
COMMERCIAL
Fastening Type :
Push-Pull
Contact Gender :
FEMALE
Housing Material :
Polyester
Datasheets
215307-3
Introducing Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 215307-3 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, 215307-3 pinout, 215307-3 datasheet PDF, 215307-3 amp .Beyond Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 215307-3 ,we also offer 5031590300, PPPC022LFBN-RC, PPTC071LFBN-RC, Our vast inventory has you covered. Contact us now for immediate solutions.

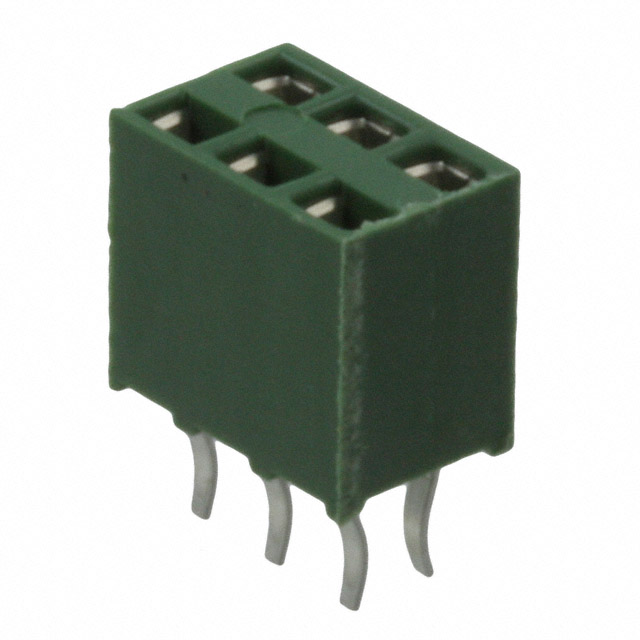

TE Connectivity AMP Connectors 215307-3


2 Rows Receptacle Kinked Pin, Solder Phosphor Bronze Through Hole Tray Gold Polyester, Glass Filled 6 Positions Female Socket

215307-3 Overview


This product is packaged in a Receptacle box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the AMPMODU HV-100 Series.Furthermore, there are other features such as TOP ENTRY, to name a few.Use it below 105°C.A minimum temperature of -55°C must be maintained for the operation of this device.By Through Hole, the part is mounted.

215307-3 Features


AMPMODU HV-100 series


215307-3 Applications


There are a lot of TE Connectivity AMP Connectors
215307-3 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
