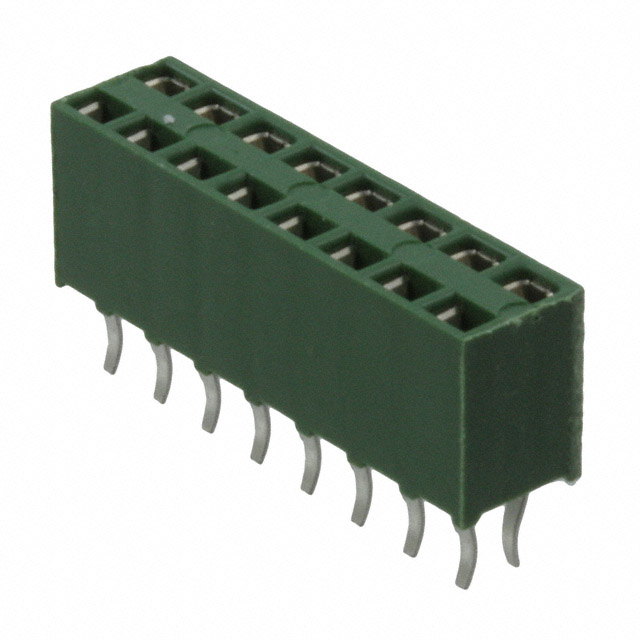

215307-8
Or copy the link below:
- Mfr.Part #
- 215307-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 16POS 0.1 GOLD PCB
- Stock
- 856
- In Stock ：
- 856
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Sealable :
- No
- Depth :
- 5.06mm
- Dielectric Withstanding Voltage :
- 750VAC V
- Filter Feature :
- No
- Contact Plating :
- Gold, Tin
- Min Operating Temperature :
- -55°C
- Body Breadth :
- 0.199 inch
- PCB Contact Pattern :
- RECTANGULAR
- ECCN Code :
- EAR99
- Length :
- 20.32mm
- Contact Finish - Mating :
- Gold
- Insulation Resistance :
- 5000000000Ohm
- Lead Free :
- Lead Free
- Mounting Type :
- Through Hole
- Series :
- AMPMODU HV-100
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Number of Conductors :
- ONE
- Reliability :
- COMMERCIAL
- MIL Conformance :
- No
- Contact Current Rating :
- 3A
- Contact Finish Thickness - Mating :
- 31.5μin 0.80μm
- Mating Contact Pitch :
- 0.1 inch
- Length - Tail :
- 3.1mm
- ELV :
- Compliant
- Number Of PCB Rows :
- 2
- Connector Type :
- Receptacle
- Mount :
- Through Hole
- Fastening Type :
- Push-Pull
- Contact Shape :
- Square
- Reference Standard :
- UL
- Plating Thickness :
- 31μin
- DIN Conformance :
- No
- Packaging :
- Tray
- Contact Gender :
- FEMALE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 2
- Contact Length - Post :
- 0.122 3.10mm
- Contact Type :
- Female Socket
- Factory Lead Time :
- 31 Weeks
- Insulation Color :
- Green
- REACH SVHC :
- No SVHC
- PCB Thickness :
- 1.6mm
- Style :
- Board to Board
- Housing Color :
- Black
- Stackable :
- yes
- HTS Code :
- 8536.69.40.40
- Contact Finish - Post :
- Tin
- Termination :
- Kinked Pin, Solder
- Housing Material :
- Polyester
- Insulation Height :
- 0.276 7.00mm
- Contact Material :
- Phosphor Bronze
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Number of Positions Loaded :
- All
- PCB Mount Retention :
- With
- Mixed Contacts :
- No
- Pitch - Mating :
- 0.100 2.54mm
- UL Flammability Code :
- 94V-0
- Contact Resistance :
- 12mOhm
- Pbfree Code :
- yes
- Option :
- GENERAL PURPOSE
- Published :
- 2005
- JESD-609 Code :
- e3
- Height :
- 7mm
- RoHS Status :
- RoHS Compliant
- Additional Feature :
- Top Entry
- Number of Positions :
- 16
- Current Rating :
- 3A
- Insulation Material :
- Polyester, Glass Filled
- Flammability Rating :
- UL94 V-0
- Orientation :
- Vertical
- Max Operating Temperature :
- 105°C
- IEC Conformance :
- No
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Material Flammability Rating :
- UL94 V-0
- Lead Length :
- 3.1mm
