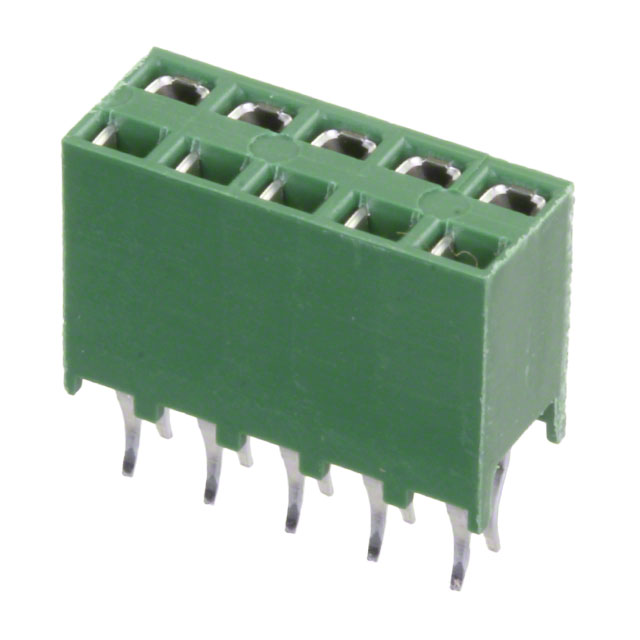

215309-5
Or copy the link below:
- Mfr.Part #
- 215309-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 10POS 0.1 GOLD PCB
- Stock
- 6,993
- In Stock ：
- 6,993
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Sealable :
- No
- Contact Current Rating :
- 3A
- IEC Conformance :
- No
- Style :
- Board to Board
- PCB Contact Pattern :
- RECTANGULAR
- Number of Conductors :
- ONE
- Body Breadth :
- 0.199 inch
- Number of Rows :
- 2
- MIL Conformance :
- No
- Number of Positions :
- 10
- Insulation Height :
- 0.335 8.51mm
- Series :
- AMPMODU HV-100
- UL Flammability Code :
- 94V-0
- Contact Plating :
- Gold, Tin
- Mounting Type :
- Through Hole
- Number of Contacts :
- 5
- Length - Tail :
- 3.1mm
- Min Operating Temperature :
- -65°C
- Published :
- 2007
- PCB Thickness :
- 1.6mm
- Rated Current (Signal) :
- 3A
- Reference Standard :
- UL
- Packaging :
- Tray
- Plating Thickness :
- 31μin
- Orientation :
- Vertical
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 31 Weeks
- DIN Conformance :
- No
- JESD-609 Code :
- e3
- Contact Finish - Mating :
- Gold
- Termination :
- Kinked Pin, Solder
- Height :
- 8.5mm
- Filter Feature :
- No
- Contact Type :
- Female Socket
- Insulation Material :
- Polyester, Glass Filled
- Mating Contact Pitch :
- 0.1 inch
- Contact Finish - Post :
- Tin
- Contact Shape :
- Square
- Stackable :
- yes
- Mixed Contacts :
- No
- Number Of PCB Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Flammability Rating :
- UL94 V-0
- Insulation Color :
- Green
- Contact Material :
- Phosphor Bronze
- Housing Material :
- Polyester
- Max Operating Temperature :
- 125°C
- Contact Finish Thickness - Mating :
- 31.5μin 0.80μm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Pbfree Code :
- yes
- PCB Mount Retention :
- With
- Depth :
- 5.06mm
- REACH SVHC :
- No SVHC
- Housing Color :
- Black
- Option :
- GENERAL PURPOSE
- Connector Type :
- Receptacle
- Material Flammability Rating :
- UL94 V-0
- Lead Length :
- 3.1mm
- ELV :
- Compliant
- Fastening Type :
- Push-Pull
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- RoHS Status :
- RoHS Compliant
- Pitch - Mating :
- 0.100 2.54mm
- Mount :
- Through Hole
- ECCN Code :
- EAR99
- Length :
- 12.7mm
- Reliability :
- COMMERCIAL
- Contact Resistance :
- 12mOhm
- Contact Length - Post :
- 0.122 3.10mm
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Datasheets
- 215309-5
2 Rows Receptacle Kinked Pin, Solder Phosphor Bronze Through Hole Tray Gold Polyester, Glass Filled 10 Positions Female Socket
215309-5 Overview
It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the AMPMODU HV-100 Series of products.It's best to use it when the temperature is below 125°C.This device must operate at a minimum temperature of -65°C.The part is mounted by Through Hole.
