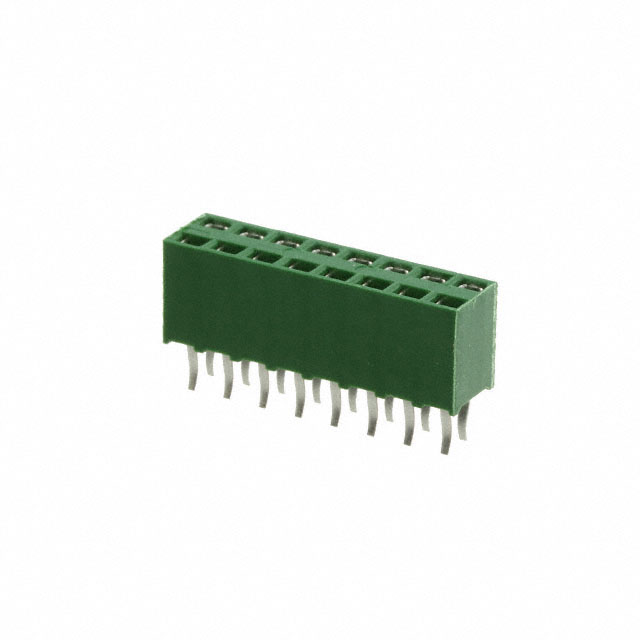

215308-8
Or copy the link below:
- Mfr.Part #
- 215308-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 16POS 0.1 TIN PCB
- Stock
- 40
- In Stock ：
- 40
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Connector Type :
- Receptacle
- Orientation :
- Vertical
- Dielectric Withstanding Voltage :
- 750VAC V
- Contact Length - Post :
- 0.122 3.10mm
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Resistance :
- 5000000000Ohm
- Housing Material :
- Polyester
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Stackable :
- yes
- Max Operating Temperature :
- 105°C
- Body Breadth :
- 0.199 inch
- Sealable :
- No
- Mating Alignment :
- With
- Mixed Contacts :
- No
- PCB Contact Pattern :
- RECTANGULAR
- Mounting Type :
- Through Hole
- Length :
- 20.32mm
- Published :
- 2009
- Reliability :
- COMMERCIAL
- Mount :
- Through Hole
- Series :
- AMPMODU HV-100
- Number of Contacts :
- 8
- Additional Feature :
- SIDE BY SIDE STACKABLE
- Termination :
- Kinked Pin, Solder
- Reference Standard :
- UL
- Pbfree Code :
- yes
- Material Flammability Rating :
- UL94 V-0
- ELV :
- Compliant
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- IEC Conformance :
- No
- ECCN Code :
- EAR99
- JESD-609 Code :
- e3
- PCB Thickness :
- 1.6mm
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Shape :
- Square
- Style :
- Board to Board
- Number of Positions :
- 16
- Flammability Rating :
- UL94 V-0
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Material :
- Phosphor Bronze
- Plating Thickness :
- 4μm
- Insulation Color :
- Green
- Contact Type :
- Female Socket
- Contact Finish - Mating :
- Tin
- DIN Conformance :
- No
- Fastening Type :
- Push-Pull
- Housing Color :
- Black, Green
- Min Operating Temperature :
- -55°C
- Option :
- GENERAL PURPOSE
- Lead Length :
- 3.1mm
- UL Flammability Code :
- 94V-0
- Number of Positions Loaded :
- All
- Packaging :
- Tray
- Mating Contact Pitch :
- 0.1 inch
- Contact Current Rating :
- 3A
- REACH SVHC :
- Unknown
- Contact Resistance :
- 12mOhm
- Number Of PCB Rows :
- 2
- Contact Finish Thickness - Mating :
- 98.4μin 2.50μm
- Factory Lead Time :
- 27 Weeks
- RoHS Status :
- RoHS Compliant
- Number of Conductors :
- ONE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- No
- Depth :
- 5.06mm
- Number of Rows :
- 2
- Filter Feature :
- No
- Insulation Height :
- 0.276 7.00mm
- Height :
- 7mm
- Datasheets
- 215308-8
2 Rows Receptacle Kinked Pin, Solder Phosphor Bronze Through Hole Tray Tin Polybutylene Terephthalate (PBT), Glass Filled 16 Positions Female Socket
215308-8 Overview
You get it in Receptacle packaging.Mounting type Through Hole is selected for the device.Packaged in a Tray case.A member of the AMPMODU HV-100 Series.Besides that, there's also SIDE BY SIDE STACKABLE, to name a few.Using it at a temperature below 105°C is ideal.A minimum temperature of -55°C is needed for this device.There's a Through Hole mount on the part.
215308-8 Features
AMPMODU HV-100 series
215308-8 Applications
There are a lot of TE Connectivity AMP Connectors
215308-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
