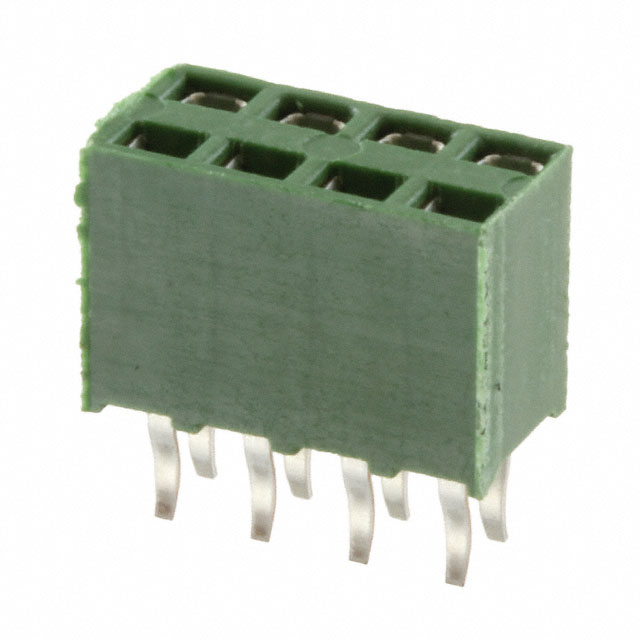

215308-4
Or copy the link below:
- Mfr.Part #
- 215308-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 8POS 0.1 TIN PCB
- Stock
- 14,118
- In Stock ：
- 14,118
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Number of Contacts :
- 4
- Published :
- 2009
- Contact Current Rating :
- 3A
- Number of Conductors :
- ONE
- JESD-609 Code :
- e3
- IEC Conformance :
- No
- Stackable :
- yes
- Insulation Resistance :
- 5000000000Ohm
- Contact Shape :
- Square
- Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.100 2.54mm
- Contact Length - Post :
- 0.122 3.10mm
- Min Operating Temperature :
- -55°C
- Sealable :
- No
- Reference Standard :
- UL
- Termination :
- Kinked Pin, Solder
- Max Operating Temperature :
- 105°C
- Dielectric Withstanding Voltage :
- 750VAC V
- Orientation :
- Vertical
- Lead Length :
- 3.1mm
- Fastening Type :
- Push-Pull
- Packaging :
- Tray
- Number of Positions :
- 8
- Mating Alignment :
- With
- PCB Contact Pattern :
- RECTANGULAR
- Mixed Contacts :
- No
- MIL Conformance :
- No
- RoHS Status :
- RoHS Compliant
- Gender :
- FEMALE
- Connector Type :
- Receptacle
- Number of Rows :
- 2
- Contact Finish - Mating :
- Tin
- PCB Thickness :
- 1.6mm
- Number of Positions Loaded :
- All
- Option :
- GENERAL PURPOSE
- Housing Color :
- Black, Green
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Number Of PCB Rows :
- 2
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Reliability :
- COMMERCIAL
- Height :
- 7mm
- Housing Material :
- Polyester
- Body Breadth :
- 0.199 inch
- Insulation Height :
- 0.276 7.00mm
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Filter Feature :
- No
- Insulation Color :
- Green
- Mounting Type :
- Through Hole
- ECCN Code :
- EAR99
- Contact Type :
- Female Socket
- Plating Thickness :
- 4μm
- Contact Material :
- Phosphor Bronze
- Pbfree Code :
- yes
- Contact Finish Thickness - Mating :
- 98.4μin 2.50μm
- Series :
- AMPMODU HV-100
- Factory Lead Time :
- 27 Weeks
- Contact Resistance :
- 12mOhm
- Additional Feature :
- SIDE BY SIDE STACKABLE
- Mating Contact Pitch :
- 0.1 inch
- Depth :
- 5.06mm
- ELV :
- Compliant
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Style :
- Board to Board
- DIN Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 215308-4
2 Rows Receptacle Kinked Pin, Solder Phosphor Bronze Through Hole Tray Tin Polybutylene Terephthalate (PBT), Glass Filled 8 Positions Female Socket
215308-4 Overview
The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the AMPMODU HV-100 Series.To name a few, there is also SIDE BY SIDE STACKABLE.When the temperature is below 105°C, it is best to use it.A minimum operating temperature of -55°C is required for this device.
215308-4 Features
AMPMODU HV-100 series
215308-4 Applications
There are a lot of TE Connectivity AMP Connectors
215308-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
