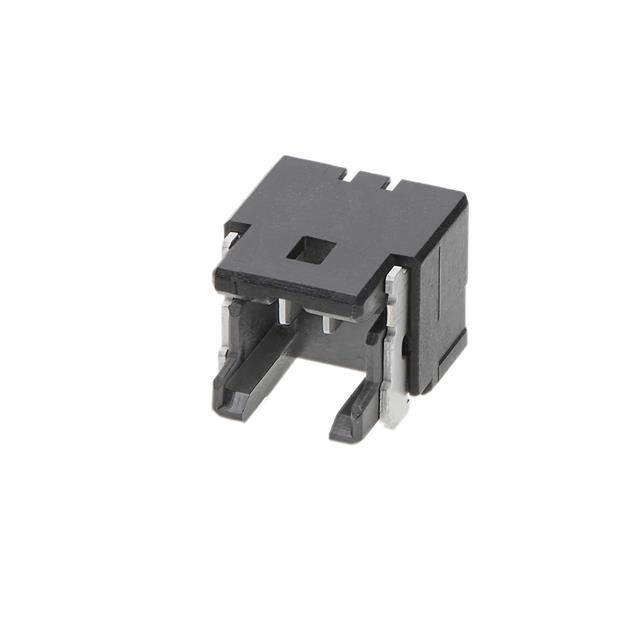

2140970020
Or copy the link below:
- Mfr.Part #
- 2140970020
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- ONEBLADE 1.0WB HDR SMT RA ETP SN
- Stock
- 4,411
- In Stock ：
- 4,411
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Product :
- Headers
- Base Product Number :
- 214097
- Number of Positions :
- 2 Position
- Mounting Style :
- SMD/SMT
- RoHS :
- Details
- Packaging :
- Reel
- Applications :
- -
- Connector Type :
- Header
- Contact Plating :
- Tin
- Package :
- Bulk
- Mated Stacking Heights :
- -
- Maximum Operating Temperature :
- + 105 C
- Minimum Operating Temperature :
- - 40 C
- Mounting Angle :
- RIGHT ANGLE
- Number of Positions Loaded :
- All
- Series :
- 214097
- Housing Color :
- Black
- Contact Material :
- Brass
- Product Status :
- Active
- Overall Contact Length :
- -
- Number of Rows :
- 1 Row
- Contact Type :
- Male Blade
- Shrouding :
- Shrouded - 3 Wall
- Operating Temperature :
- -40°C ~ 105°C
- Ingress Protection :
- -
- Insulation Height :
- 0.157 (4.00mm)
- Contact Finish - Post :
- Tin
- Style :
- Board to Cable/Wire
- Contact Shape :
- RECTANGULAR
- Pitch :
- 1 mm
- Tradename :
- OneBlade
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Termination Style :
- Solder
- Row Spacing - Mating :
- -
- Insulation Color :
- Black
- Contact Finish Thickness - Post :
- 39.4µin (1.00µm)
- Termination :
- Solder
- Current Rating (Amps) :
- Varies by Wire Gauge
- Features :
- Solder Retention
- Fastening Type :
- Friction Lock
- Current Rating :
- 2.5 A
- Housing Material :
- Brass
- Mounting Type :
- Surface Mount, Right Angle
- Contact Finish - Mating :
- Tin
- Pitch - Mating :
- 0.039 (1.00mm)
- Contact Finish Thickness - Mating :
- 39.4µin (1.00µm)
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Mating :
- -
- Voltage Rating :
- 100 VAC
- Contact Length - Post :
- -
- Datasheets
- 2140970020
1 Row Rows Header Reel 2 Position Positions Surface Mount, Right Angle Male Blade 214097 Brass
214097-0020 Overview
Packaging is in the form of Header.This device has a Surface Mount, Right Angle mounting type.An orange Reel case is used to package the product.Specifically, it is one of the products in the 214097 Series.
214097-0020 Features
214097 series
214097-0020 Applications
There are a lot of Molex
214097-0020 Rectangular Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
