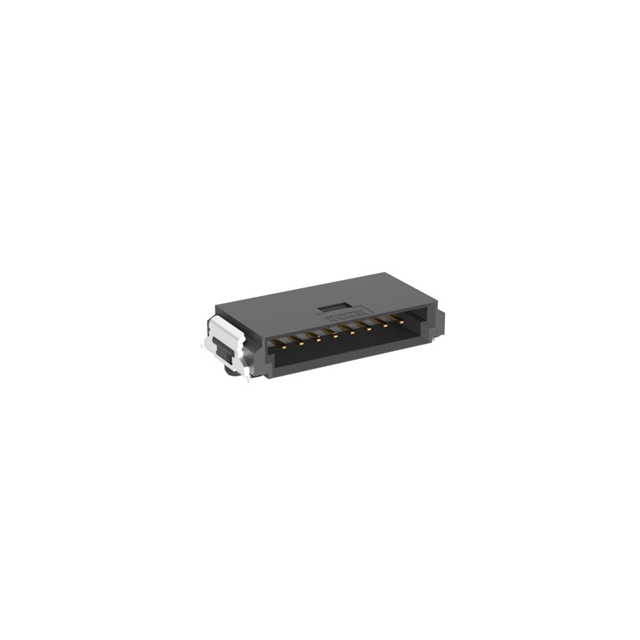

214014

Manufacturer :

TE Connectivity

Product Category :

Headers, Male Pins

Number Of PCB Rows :

1

Reliability :

COMMERCIAL

Connector Type :

COMBINATION LINE CONNECTOR

MIL Conformance :

No

Gender :

M

Mounting Style :

Surface Mount

Contact Material :

COPPER ALLOY

DIN Conformance :

No

Product Depth (mm) :

7.2(mm)

Pitch (mm) :

1.27(mm)

Contact Finish Termination :

Tin (Sn)

Contact Resistance Max :

25(mohm)

Number of Contact Rows :

1

Reach Compliance Code :

Compliant

Contact Pattern :

RECTANGULAR

Empty Shell :

No

Rated Current (Signal) :

3.6 A

Termination Type :

Surface Mount

Number of Contacts :

8(POS)

Terminal Pitch :

1.27 mm

Filter Feature :

No

Operating Temp Range :

-55C to 125C

Contact Gender :

Male

Current Rating (Max) :

3.6(A)

JESD-609 Code :

e3

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Subcategory :

Headers and Edge Type Connectors

Reference Standard :

UL

PCB Contact Pattern :

RECTANGULAR

Product Height (mm) :

2.98(mm)

Mounting Option 1 :

LOCKING

HTS Code :

8536.69.40.30

Termination Method :

Solder

Insulation Resistance :

10000000000 Ω

Mating Contact Pitch :

0.05 inch

Shell Material :

LIQUID CRYSTAL POLYMER

Durability :

500 Cycles

Type :

Wire to Board

Board Mounting Option :

PEG

Contact Resistance :

25 mΩ

Additional Feature :

MiniBridge

Manufacturer :

ERNI

Polarization Key :

POLARIZED HOUSING

Body Breadth :

0.117 inch

IEC Conformance :

No

Total Number of Contacts :

8

Contact Style :

SQ PIN-SKT

Dielectric Withstanding Voltage :

700VAC V

Mixed Contacts :

No

Pbfree Code :

yes

Packaging :

Tape and Reel

ECCN Code :

EAR99

Insertion Force-Max :

1.0008 N

Product Length (mm) :

15.24(mm)

Body Depth :

0.283 inch

Mounting Type :

BOARD

Option :

GENERAL PURPOSE

UL Flammability Code :

94V-0

Body Orientation :

RIGHT ANGLE

Body/Shell Style :

Receptacle
