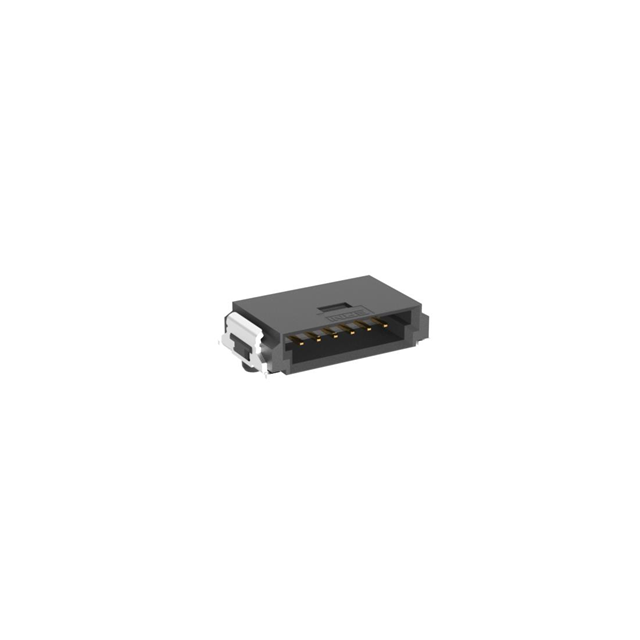

214013
- Mfr.Part #
- 214013
- Manufacturer
- TE Connectivity
- Package / Case
- Datasheet
- Download
- Description
- MIBR M 06POS RA A SMT
- Stock
- 4,868
- In Stock :
- 4,868
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity
- Product Category :
- Headers, Male Pins
- Reliability :
- COMMERCIAL
- Connector Type :
- COMBINATION LINE CONNECTOR
- Shell Material :
- LIQUID CRYSTAL POLYMER
- Dielectric Withstanding Voltage :
- 700VAC V
- Contact Gender :
- Male
- Number of Contact Rows :
- 1
- Rated Current (Signal) :
- 3.7 A
- Contact Style :
- SQ PIN-SKT
- Contact Material :
- COPPER ALLOY
- Reach Compliance Code :
- Compliant
- Insulation Resistance :
- 10000000000 Ω
- Body/Shell Style :
- Receptacle
- Termination Type :
- Surface Mount
- UL Flammability Code :
- 94V-0
- ECCN Code :
- EAR99
- Body Breadth :
- 0.117 inch
- Mounting Type :
- BOARD
- Packaging :
- Tape and Reel
- Contact Pattern :
- RECTANGULAR
- JESD-609 Code :
- e3
- PCB Contact Pattern :
- RECTANGULAR
- Pbfree Code :
- yes
- Number of Contacts :
- 6(POS)
- Total Number of Contacts :
- 6
- Mixed Contacts :
- No
- Durability :
- 500 Cycles
- Polarization Key :
- POLARIZED HOUSING
- Product Depth (mm) :
- 7.2(mm)
- Filter Feature :
- No
- Contact Finish Termination :
- Tin (Sn)
- Mounting Style :
- Surface Mount
- Reference Standard :
- UL
- Number Of PCB Rows :
- 1
- Operating Temp Range :
- -55C to 125C
- HTS Code :
- 8536.69.40.30
- Mounting Option 1 :
- LOCKING
- Body Depth :
- 0.283 inch
- Subcategory :
- Headers and Edge Type Connectors
- IEC Conformance :
- No
- Board Mounting Option :
- PEG
- Termination Method :
- Solder
- Product Length (mm) :
- 12.7(mm)
- Additional Feature :
- MiniBridge
- Terminal Pitch :
- 1.27 mm
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Empty Shell :
- No
- MIL Conformance :
- No
- Body Orientation :
- RIGHT ANGLE
- Gender :
- M
- Insertion Force-Max :
- 1.0008 N
- Manufacturer :
- ERNI
- Contact Resistance :
- 25 mΩ
- Pitch (mm) :
- 1.27(mm)
- DIN Conformance :
- No
- Mating Contact Pitch :
- 0.05 inch
- Option :
- GENERAL PURPOSE
- Type :
- Wire to Board
- Product Height (mm) :
- 2.98(mm)
- Datasheets
- 214013
