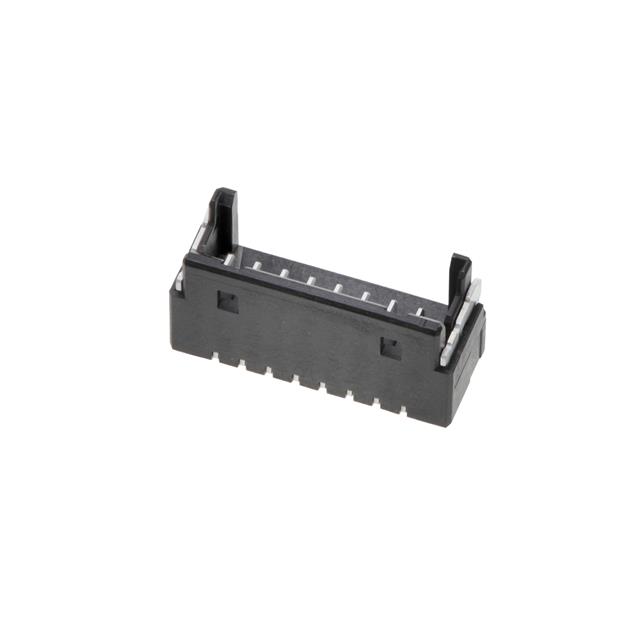

2140940080

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Finish Thickness - Mating :

39.4µin (1.00µm)

Contact Finish - Post :

Tin

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Row Spacing - Mating :

-

Current Rating :

2.5A

Ingress Protection :

-

Mated Stacking Heights :

-

Insulation Height :

0.213 (5.40mm)

Contact Length - Post :

-

Shrouding :

Shrouded - 3 Wall

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Base Product Number :

214094

Number of Contacts :

8

Pitch - Mating :

0.039 (1.00mm)

Termination Method :

Solder

Fastening Type :

Friction Lock

Insulation Color :

Black

Minimum Operating Temperature :

- 40 C

Operating Temperature :

-40°C ~ 105°C

Subcategory :

Headers and Wire Housings

Series :

OneBlade

Connector System :

Wire to Board

Product :

Headers

Contact Length - Mating :

-

Contact Material :

Brass

Contact Plating :

Tin Plated Contacts

Connector Type :

Header

Contact Shape :

RECTANGULAR

Voltage Rating :

100VAC/DC

Contact Type :

Male Blade

Current Rating (Amps) :

Varies by Wire Gauge

Contact Finish - Mating :

Tin

Mounting Angle :

Straight

Pitch :

1mm

Product Status :

Active

Mounting Type :

Surface Mount

Termination :

Solder

Mounting Style :

PCB Mount

Housing Color :

Black

Number of Positions :

8

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Number of Positions Loaded :

All

Style :

Board to Cable/Wire

Termination Style :

Wire Wrap

Overall Contact Length :

-

Features :

Solder Retention

Applications :

-

Body Orientation :

Vertical

Maximum Operating Temperature :

+ 105 C

Number of Rows :

2

Material Flammability Rating :

UL94 V-0

Product Type :

Headers and Wire Housings
