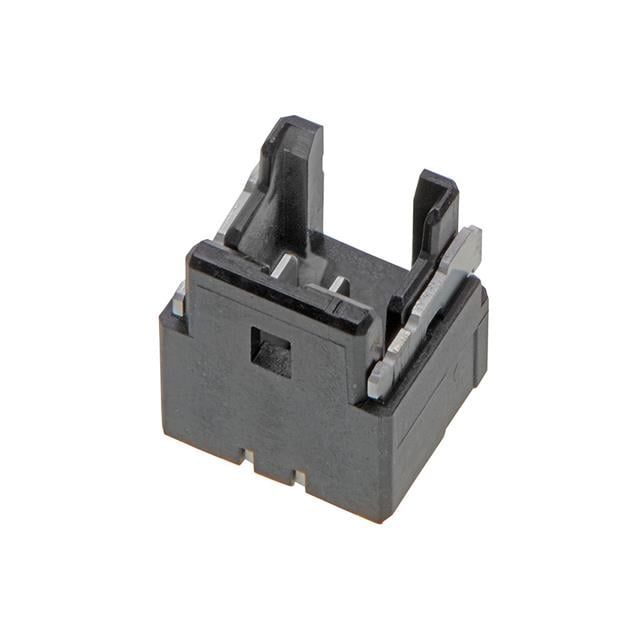

2140940030

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Series :

OneBlade

Number of Contacts :

3

Mounting Type :

Surface Mount

Connector System :

Wire to Board

Product Status :

Active

Contact Finish - Mating :

Tin

Insulation Height :

0.213 (5.40mm)

Contact Plating :

Tin Plated Contacts

Voltage Rating :

100VAC/DC

Contact Length - Mating :

-

Overall Contact Length :

-

Pitch :

1mm

Material Flammability Rating :

UL94 V-0

Contact Shape :

RECTANGULAR

Pitch - Mating :

0.039 (1.00mm)

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Mounting Angle :

Straight

Maximum Operating Temperature :

+ 105 C

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Operating Temperature :

-40°C ~ 105°C

Mated Stacking Heights :

-

Termination Style :

Wire Wrap

Number of Positions :

3

Number of Positions Loaded :

All

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Housing Color :

Black

Fastening Type :

Friction Lock

Applications :

-

Contact Material :

Brass

Product Type :

Headers and Wire Housings

Current Rating :

2.5A

Number of Rows :

2

Features :

Solder Retention

Ingress Protection :

-

Shrouding :

Shrouded - 3 Wall

Contact Finish Thickness - Mating :

39.4µin (1.00µm)

Termination Method :

Solder

Mounting Style :

PCB Mount

Base Product Number :

214094

Insulation Color :

Black

Current Rating (Amps) :

Varies by Wire Gauge

Product :

Headers

Connector Type :

Header

Row Spacing - Mating :

-

Style :

Board to Cable/Wire

Body Orientation :

Vertical

Subcategory :

Headers and Wire Housings

Contact Type :

Male Blade

Termination :

Solder

Contact Length - Post :

-

Minimum Operating Temperature :

- 40 C

Contact Finish - Post :

Tin
