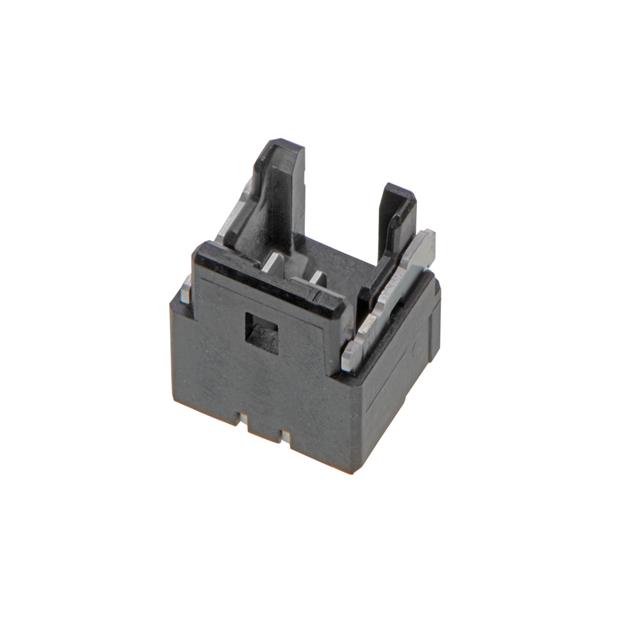

2140940020

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mated Stacking Heights :

-

Termination Method :

Solder

Material Flammability Rating :

UL94 V-0

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Contact Length - Mating :

-

Termination Style :

Wire Wrap

Overall Contact Length :

-

Pitch :

1 mm

Minimum Operating Temperature :

- 40 C

Contact Length - Post :

-

Contact Finish - Post :

Tin

Number of Positions Loaded :

All

Mounting Type :

Surface Mount

Insulation Color :

Black

Contact Material :

Brass

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Termination :

Solder

Operating Temperature :

-40°C ~ 105°C

Number of Rows :

1 Row

Current Rating :

2.5 A

Features :

Solder Retention

Row Spacing - Mating :

-

Contact Plating :

Tin

Mounting Style :

PCB Mount

Housing Color :

Black

Contact Finish - Mating :

Tin

Pitch - Mating :

0.039 (1.00mm)

Ingress Protection :

-

Number of Contacts :

2

Series :

214094

Voltage Rating :

100 V

Applications :

-

Contact Finish Thickness - Mating :

39.4µin (1.00µm)

Base Product Number :

214094

Fastening Type :

Friction Lock

Packaging :

Cut Tape

Connector System :

Wire to Board

Product :

Headers

Style :

Board to Cable/Wire

Connector Type :

Header

Mounting Angle :

Straight

Number of Positions :

2 Position

Current Rating (Amps) :

Varies by Wire Gauge

Insulation Height :

0.213 (5.40mm)

Product Status :

Active

Shrouding :

Shrouded - 3 Wall

Maximum Operating Temperature :

+ 105 C

Body Orientation :

Vertical

Contact Type :

Male Blade

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Contact Shape :

RECTANGULAR

RoHS :

Details

Tradename :

OneBlade
