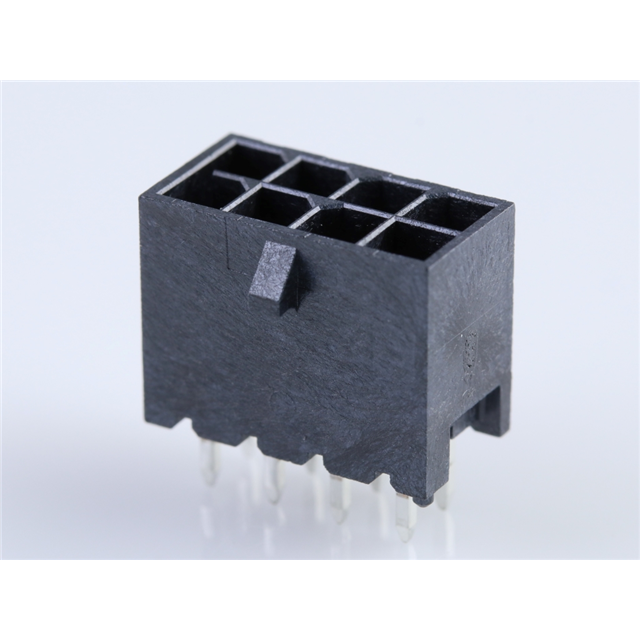

2068321801
Or copy the link below:
- Mfr.Part #
- 2068321801
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 18POS 3MM
- Stock
- 403
- In Stock ：
- 403
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Positions :
- 18
- RoHS Status :
- ROHS3 Compliant
- Contact Shape :
- Square
- Number of Positions Loaded :
- All
- Number of Rows :
- 2
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Factory Lead Time :
- 14 Weeks
- Mounting Type :
- Through Hole
- Series :
- Micro-Fit+ 206832
- Current Rating (Amps) :
- 12.5A per Contact
- Contact Material :
- COPPER ALLOY
- Connector Type :
- Header
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Tray
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Feature :
- Board Guide, Glow Wire Compliant
- Shrouding :
- Shrouded - 4 Wall
- Operating Temperature :
- -40°C~105°C
- Insulation Height :
- 0.390 9.91mm
- Style :
- Board to Cable/Wire
- Contact Finish - Mating :
- Tin
- Pitch - Mating :
- 0.118 3.00mm
- Termination :
- Solder
- Fastening Type :
- Locking Ramp
- Contact Type :
- Male Pin
- Insulation Color :
- Black
- Contact Length - Post :
- 0.125 3.18mm
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 600VAC/DC
- Datasheets
- 2068321801
Micro-Fit+ 206832 Series 2-Row Header Solder Copper Alloy Tray Through Hole Tin Liquid Crystal Polymer (LCP), Glass Filled 18-Position Board to Cable/Wire 0.390 9.91mm Height
2068321801 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the Micro-Fit+ 206832 Series.There is the possibility of using the device for Automotive, General Purpose, Medical, Telecommunications.In many ways, Board Guide, Glow Wire Compliant makes it more powerful.Operating temperature is set to -40°C~105°C.
2068321801 Features
Micro-Fit+ 206832 series
2068321801 Applications
There are a lot of Molex
2068321801 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
