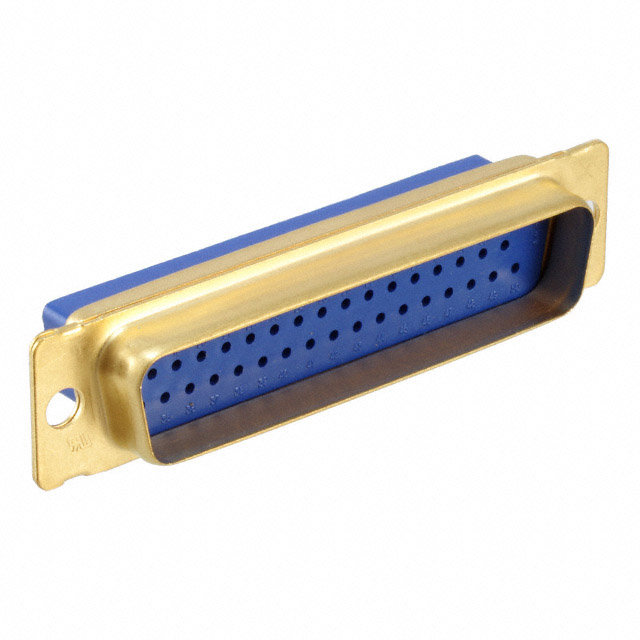

206804-1
Or copy the link below:
- Mfr.Part #
- 206804-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HOUSING PLUG 50POS
- Stock
- 35,263
- In Stock ：
- 35,263
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub, D-Shaped Connector Housings
- Length :
- 67.31mm
- Shell Material, Finish :
- Brass, Gold Plated
- DIN Conformance :
- No
- Contact Type :
- Signal
- Mounting Type :
- Free Hanging (In-Line)
- Shell Size, Connector Layout :
- 5 DD D
- Min Operating Temperature :
- -55°C
- Max Operating Temperature :
- 125°C
- Option :
- GENERAL PURPOSE
- MIL Conformance :
- No
- Pitch :
- 2.7mm
- Orientation :
- Straight
- ELV :
- Compliant
- Contact Style :
- Crimp
- Depth :
- 16.76mm
- Series :
- AMPLIMITE 109
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shell Material :
- Brass
- Filter Feature :
- No
- Note :
- Contacts Not Included
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Mount :
- Free Hanging, Panel
- Number of Rows :
- 3
- Lead Free :
- Lead Free
- Packaging :
- Bulk
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Flange Feature :
- Housing/Shell (Unthreaded)
- Sealable :
- No
- Dielectric Material :
- Polyester
- Number of Positions :
- 50
- Hole Diameter :
- 3.9116 mm
- Total Number of Contacts :
- 50
- RoHS Status :
- RoHS Compliant
- Contact Plating :
- Gold
- IEC Conformance :
- No
- Contact Material :
- Copper
- Factory Lead Time :
- 8 Weeks
- Empty Shell :
- No
- Connector Type :
- Plug for Male Contacts
- UL Flammability Code :
- 94V-0
- Housing Color :
- Blue
- Mixed Contacts :
- No
- Published :
- 2009
- Current Rating :
- 7.5A
- Gender :
- Male
- Shell Finish Thickness :
- 50μin 1.27μm
- Connector Style :
- D-Sub
- Datasheets
- 206804-1
