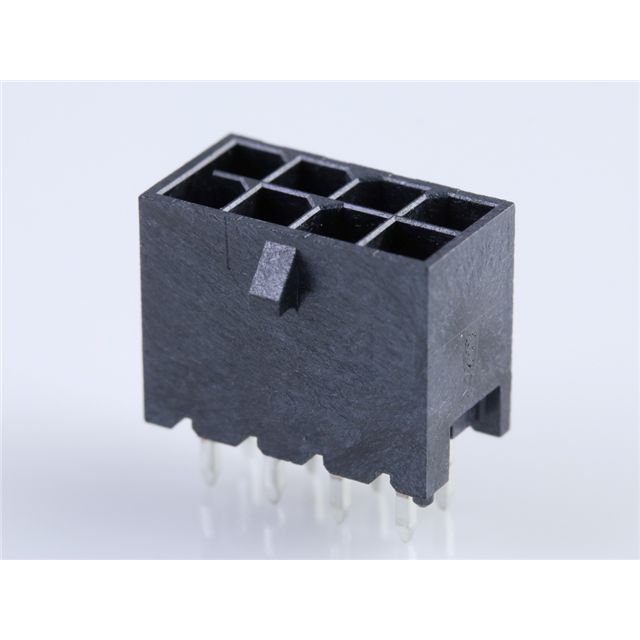

2068320801
Or copy the link below:
- Mfr.Part #
- 2068320801
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 3MM
- Stock
- 1,753
- In Stock ：
- 1,753
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- All
- Voltage - Rated :
- 600VAC/DC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating (Amps) :
- 12.5A per Contact
- Termination :
- Solder
- RoHS Status :
- ROHS3 Compliant
- Insulation Height :
- 0.390 9.91mm
- Contact Shape :
- Square
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Shrouding :
- Shrouded - 4 Wall
- Style :
- Board to Cable/Wire
- Insulation Color :
- Black
- Contact Length - Post :
- 0.125 3.18mm
- Packaging :
- Tray
- Connector Type :
- Header
- Operating Temperature :
- -40°C~105°C
- Number of Positions :
- 8
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Material Flammability Rating :
- UL94 V-0
- Series :
- Micro-Fit+ 206832
- Number of Rows :
- 2
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Through Hole
- Feature :
- Board Guide, Glow Wire Compliant
- Contact Type :
- Male Pin
- Fastening Type :
- Locking Ramp
- Pitch - Mating :
- 0.118 3.00mm
- Factory Lead Time :
- 11 Weeks
- Contact Finish - Mating :
- Tin
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Datasheets
- 2068320801
Micro-Fit+ 206832 Series 2-Row Header Solder Copper Alloy Tray Through Hole Tin Liquid Crystal Polymer (LCP), Glass Filled 8-Position Board to Cable/Wire 0.390 9.91mm Height
2068320801 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number Micro-Fit+ 206832 belongs to the Micro-Fit+ 206832 Series.In addition to Automotive, General Purpose, Medical, Telecommunications, there are other possible applications for the device.In many ways, it is more powerful due to its Board Guide, Glow Wire Compliant feature.This device operates at a temperature of -40°C~105°C.
2068320801 Features
Micro-Fit+ 206832 series
2068320801 Applications
There are a lot of Molex
2068320801 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
