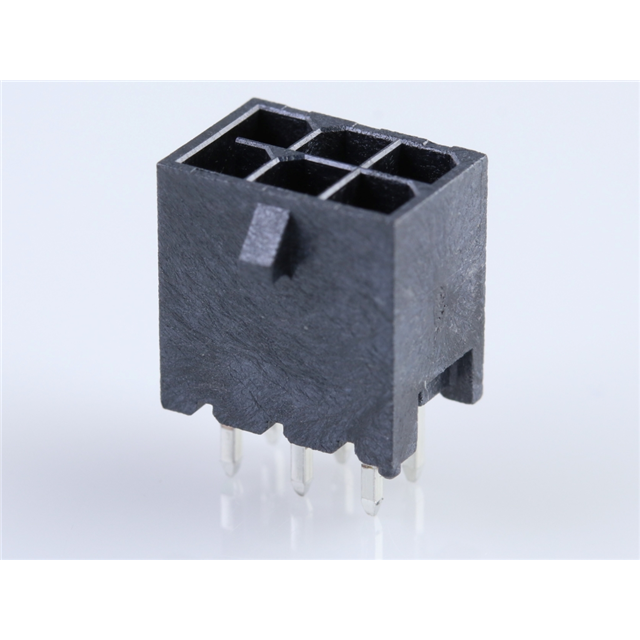

2068320602
Or copy the link below:
- Mfr.Part #
- 2068320602
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- VERT HDR ASSY 2X3 15AU
- Stock
- 1,504
- In Stock ：
- 1,504
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Ingress Protection :
- -
- Contact Finish Thickness - Post :
- -
- Features :
- Board Guide, Glow Wire Compliant
- Contact Finish - Mating :
- Gold
- Mounting Style :
- Through Hole
- Product Status :
- Active
- Contact Length - Post :
- 0.125 (3.18mm)
- Base Product Number :
- 206832
- Pitch :
- 3 mm
- Contact Length - Mating :
- -
- Current Rating (Amps) :
- Varies by Wire Gauge
- Product :
- Headers
- Contact Finish - Post :
- Tin
- Contact Gender :
- Pin (Male)
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Contact Material :
- COPPER ALLOY
- Mated Stacking Heights :
- -
- Style :
- Board to Cable/Wire
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Package :
- Tray
- Maximum Operating Temperature :
- + 105 C
- Contact Plating :
- Gold
- Termination Style :
- Solder Pin
- Minimum Operating Temperature :
- - 40 C
- Contact Shape :
- Square
- Fastening Type :
- Locking Ramp
- Termination :
- Solder
- Number of Rows :
- 2 Row
- Type :
- Power
- Number of Contacts :
- 6
- Series :
- 206832
- Number of Positions :
- 6 Position
- Contact Type :
- Male Pin
- Housing Color :
- Black
- Overall Contact Length :
- -
- Body Orientation :
- Vertical
- Contact Finish Thickness - Mating :
- 15.0μin (0.38μm)
- Packaging :
- Tray
- RoHS :
- Details
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -40°C ~ 105°C
- Pitch - Mating :
- 0.118 (3.00mm)
- Number of Positions Loaded :
- All
- Mounting Angle :
- Straight
- Flammability Rating :
- UL 94 V-0
- Application :
- Power, Wire-to-Board
- Mounting Type :
- Through Hole
- Insulation Color :
- Black
- Current Rating :
- 12.5 A
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Connector Type :
- Header
- Shrouding :
- Shrouded - 4 Wall
- Applications :
- -
- Tradename :
- Micro-Fit+
- Voltage Rating :
- 600 VAC/DC
- Insulation Height :
- 0.390 (9.91mm)
- Row Spacing :
- 3 mm
- Datasheets
- 2068320602
2068320602 Documents
2 Row Rows Header Tray 6 Position Positions Through Hole Male Pin 206832 Liquid Crystal Polymer (LCP)
206832-0602 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the 206832 Series.
206832-0602 Features
206832 series
206832-0602 Applications
There are a lot of Molex
206832-0602 Rectangular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
