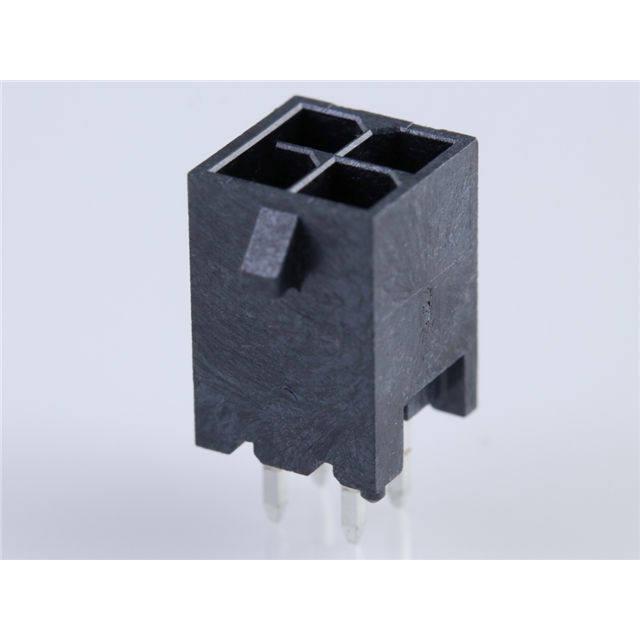

2068320402
Or copy the link below:
- Mfr.Part #
- 2068320402
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- VERT HDR ASSY 2X2 15AU
- Stock
- 688
- In Stock ：
- 688
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.118 (3.00mm)
- Shrouding :
- Shrouded - 4 Wall
- Mounting Type :
- Through Hole
- Contact Type :
- Male Pin
- Body Orientation :
- Vertical
- Termination Style :
- Solder Pin
- Number of Positions :
- 4 Position
- Style :
- Board to Cable/Wire
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Product :
- Headers
- Housing Color :
- Black
- Features :
- Board Guide, Glow Wire Compliant
- Type :
- Power
- Contact Material :
- COPPER ALLOY
- Row Spacing :
- 3 mm
- Mated Stacking Heights :
- -
- Pitch :
- 3 mm
- Mounting Style :
- Through Hole
- Contact Finish Thickness - Post :
- -
- Insulation Height :
- 0.390 (9.91mm)
- Number of Contacts :
- 4
- Applications :
- -
- Product Status :
- Active
- Tradename :
- Micro-Fit+
- Base Product Number :
- 206832
- RoHS :
- Details
- Series :
- 206832
- Operating Temperature :
- -40°C ~ 105°C
- Application :
- Power, Wire-to-Board
- Current Rating :
- 12.5 A
- Contact Finish - Mating :
- Gold
- Contact Shape :
- Square
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Contact Plating :
- Gold
- Number of Positions Loaded :
- All
- Overall Contact Length :
- -
- Package :
- Tray
- Material Flammability Rating :
- UL94 V-0
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Maximum Operating Temperature :
- + 105 C
- Minimum Operating Temperature :
- - 40 C
- Contact Length - Mating :
- -
- Packaging :
- Tray
- Voltage Rating :
- 600 VAC/DC
- Contact Length - Post :
- 0.125 (3.18mm)
- Current Rating (Amps) :
- Varies by Wire Gauge
- Connector Type :
- Header
- Flammability Rating :
- UL 94 V-0
- Number of Rows :
- 2 Row
- Fastening Type :
- Locking Ramp
- Ingress Protection :
- -
- Contact Finish - Post :
- Tin
- Termination :
- Solder
- Mounting Angle :
- Straight
- Insulation Color :
- Black
- Contact Gender :
- Pin (Male)
- Contact Finish Thickness - Mating :
- 15.0μin (0.38μm)
- Datasheets
- 2068320402
2068320402 Documents
2 Row Rows Header Tray 4 Position Positions Through Hole Male Pin 206832 Liquid Crystal Polymer (LCP)
206832-0402 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the 206832 Series, it belongs to the range of products of that series.
206832-0402 Features
206832 series
206832-0402 Applications
There are a lot of Molex
206832-0402 Rectangular Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
