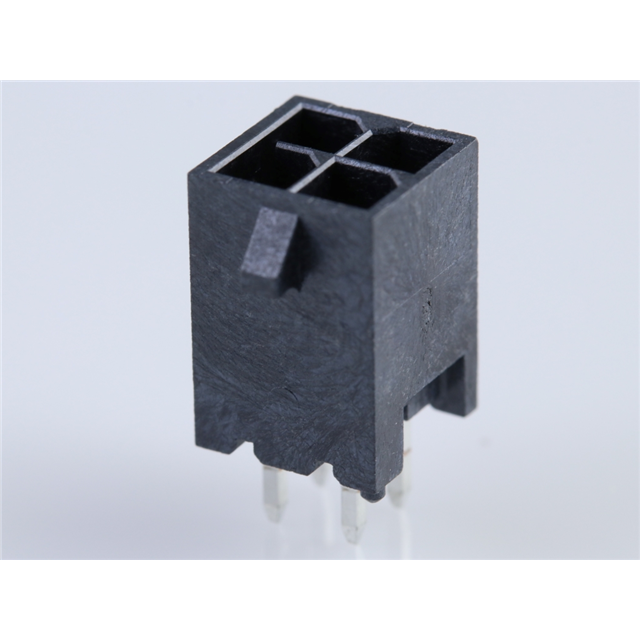

2068320401
Or copy the link below:
- Mfr.Part #
- 2068320401
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 3MM
- Stock
- 1,004
- In Stock ：
- 1,004
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Shape :
- Square
- Operating Temperature :
- -40°C~105°C
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 13 Weeks
- Contact Type :
- Male Pin
- Filter Feature :
- No
- DIN Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 600VAC/DC
- Number of Positions :
- 4
- Insulation Height :
- 0.390 9.91mm
- Packaging :
- Tray
- Feature :
- Board Guide, Glow Wire Compliant
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- JESD-609 Code :
- e3
- Pitch - Mating :
- 0.118 3.00mm
- Contact Length - Post :
- 0.125 3.18mm
- Insulation Color :
- Black
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Connector Type :
- Header
- Shrouding :
- Shrouded - 4 Wall
- Style :
- Board to Cable/Wire
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 2
- MIL Conformance :
- No
- Current Rating (Amps) :
- 12.5A per Contact
- Termination :
- Solder
- Mounting Type :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Fastening Type :
- Locking Ramp
- Contact Finish - Mating :
- Tin
- Series :
- Micro-Fit+ 206832
- Empty Shell :
- No
- Contact Material :
- COPPER ALLOY
- Mixed Contacts :
- No
- Additional Feature :
- POLARIZED, SHROUDED
- IEC Conformance :
- No
- Datasheets
- 2068320401
2068320401 Documents
Micro-Fit+ 206832 Series 2-Row Header Solder Copper Alloy Tray Through Hole Tin Liquid Crystal Polymer (LCP), Glass Filled 4-Position Board to Cable/Wire 0.390 9.91mm Height
2068320401 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number Micro-Fit+ 206832 belongs to the Micro-Fit+ 206832 Series.Further, there are features such as POLARIZED, SHROUDED, to name only a few.In addition to Automotive, General Purpose, Medical, Telecommunications, there are other possible applications for the device.In many ways, it is more powerful due to its Board Guide, Glow Wire Compliant feature.This device operates at a temperature of -40°C~105°C.
2068320401 Features
Micro-Fit+ 206832 series
2068320401 Applications
There are a lot of Molex
2068320401 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
