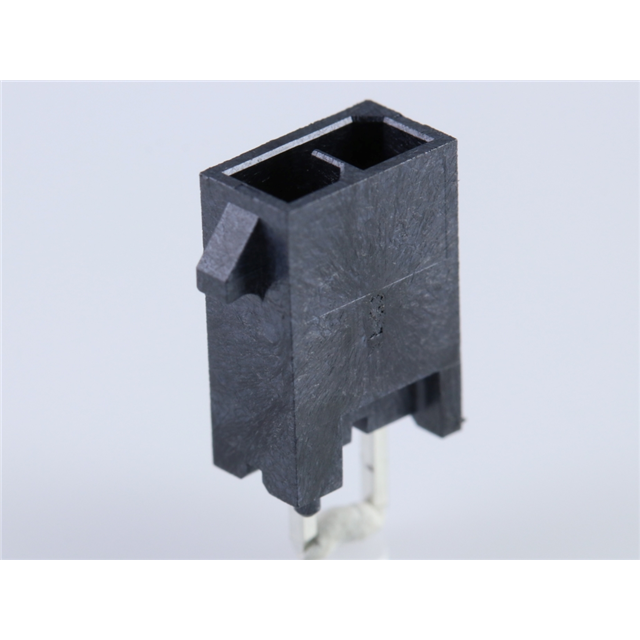

2068320202
Or copy the link below:
- Mfr.Part #
- 2068320202
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- VERT HDR ASSY 2X1 15AU
- Stock
- 6,517
- In Stock ：
- 6,517
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Product Status :
- Active
- Series :
- 206832
- Maximum Operating Temperature :
- + 105 C
- Current Rating (Amps) :
- Varies by Wire Gauge
- Material Flammability Rating :
- UL94 V-0
- Voltage Rating :
- 600 VAC/DC
- RoHS :
- Details
- Contact Finish - Post :
- Tin
- Operating Temperature :
- -40°C ~ 105°C
- Fastening Type :
- Locking Ramp
- Insulation Color :
- Black
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Overall Contact Length :
- -
- Body Orientation :
- Vertical
- Contact Length - Post :
- 0.125 (3.18mm)
- Contact Shape :
- Square
- Contact Finish Thickness - Post :
- -
- Contact Plating :
- Gold
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Current Rating :
- 12.5 A
- Tradename :
- Micro-Fit+
- Minimum Operating Temperature :
- - 40 C
- Termination Style :
- Solder Pin
- Contact Gender :
- Pin (Male)
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Number of Rows :
- 2 Row
- Shrouding :
- Shrouded - 4 Wall
- Row Spacing :
- 3 mm
- Style :
- Board to Cable/Wire
- Mounting Style :
- Through Hole
- Number of Positions :
- 2 Position
- Product :
- Headers
- Base Product Number :
- 206832
- Connector Type :
- Header
- Contact Length - Mating :
- -
- Package :
- Tray
- Contact Finish Thickness - Mating :
- 15.0μin (0.38μm)
- Ingress Protection :
- -
- Mated Stacking Heights :
- -
- Pitch :
- 3 mm
- Pitch - Mating :
- -
- Number of Positions Loaded :
- All
- Contact Type :
- Male Pin
- Applications :
- -
- Termination :
- Solder
- Application :
- Power, Wire-to-Board
- Type :
- Power
- Mounting Type :
- Through Hole
- Contact Material :
- COPPER ALLOY
- Flammability Rating :
- UL 94 V-0
- Housing Color :
- Black
- Contact Finish - Mating :
- Gold
- Mounting Angle :
- Straight
- Insulation Height :
- 0.390 (9.91mm)
- Number of Contacts :
- 8
- Features :
- Board Guide, Glow Wire Compliant
- Packaging :
- Tray
- Datasheets
- 2068320202
2068320202 Documents
2 Row Rows Header Tray 2 Position Positions Through Hole Male Pin 206832 Liquid Crystal Polymer (LCP)
206832-0202 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the 206832 Series.
206832-0202 Features
206832 series
206832-0202 Applications
There are a lot of Molex
206832-0202 Rectangular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
