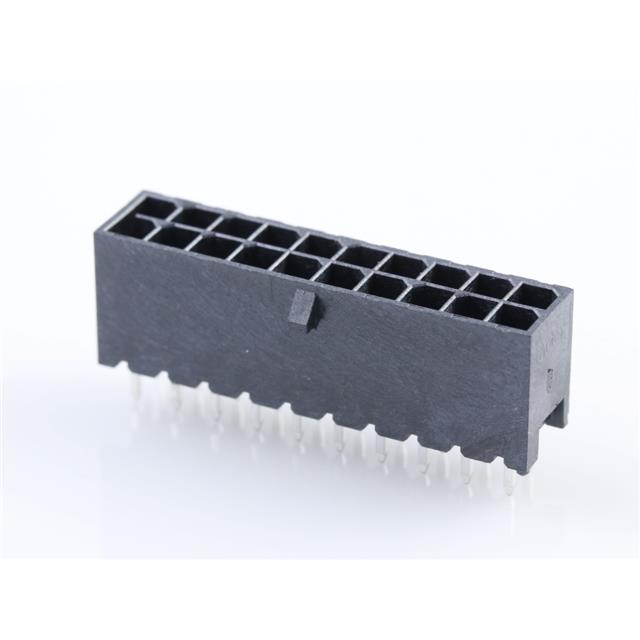

206832-2001
Or copy the link below:
- Mfr.Part #
- 206832-2001
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- MICRO-FIT PLUS VERT HDR ASSY 2X1
- Stock
- 7,109
- In Stock ：
- 7,109
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Series :
- Micro-Fit+ 206832
- Number of Rows :
- 2
- Shrouding :
- Shrouded - 4 Wall
- Packaging :
- Tray
- Voltage - Rated :
- 600VAC/DC
- Factory Lead Time :
- 14 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Square
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Mounting Type :
- Through Hole
- Insulation Color :
- Black
- Contact Length - Post :
- 0.125 3.18mm
- Contact Material :
- COPPER ALLOY
- Pitch - Mating :
- 0.118 3.00mm
- Insulation Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Termination :
- Solder
- Fastening Type :
- Locking Ramp
- Material Flammability Rating :
- UL94 V-0
- Feature :
- Board Guide, Glow Wire Compliant
- Connector Type :
- Header
- Number of Positions :
- 20
- Contact Type :
- Male Pin
- Insulation Height :
- 0.390 9.91mm
- Contact Finish - Mating :
- Tin
- Style :
- Board to Cable/Wire
- Current Rating (Amps) :
- 12.5A per Contact
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature :
- -40°C~105°C
- Datasheets
- 206832-2001
206832-2001 Documents
Micro-Fit+ 206832 Series 2-Row Header Solder Copper Alloy Tray Through Hole Tin Liquid Crystal Polymer (LCP), Glass Filled 20-Position Board to Cable/Wire 0.390 9.91mm Height
2068322001 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the Micro-Fit+ 206832 Series of products.Automotive, General Purpose, Medical, Telecommunications is a possible application for the device.Its Board Guide, Glow Wire Compliant feature renders it more powerful in many ways.The device runs in -40°C~105°C Operating Temperature.
2068322001 Features
Micro-Fit+ 206832 series
2068322001 Applications
There are a lot of Molex
2068322001 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
